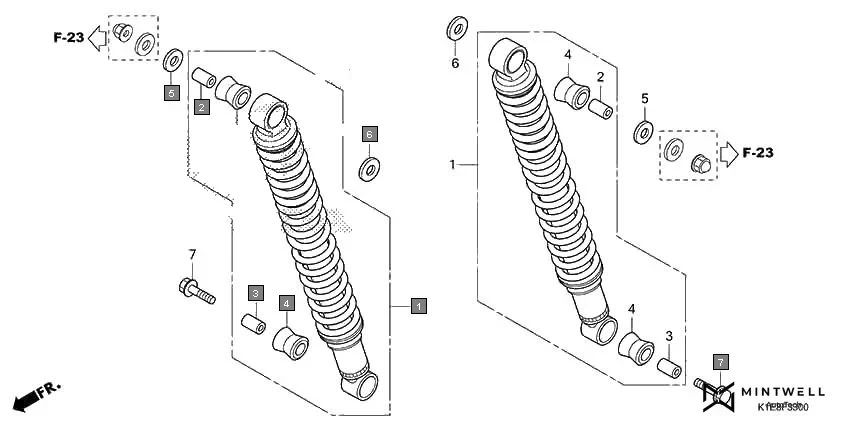

F-33 - REAR CUSHION
HONDA CD 110 Dream CB110CMDR · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K63-901 | CUSHION ASSY., RR. | 2 | |
| 2 | 52485-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 3 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 4 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 4 | |
| 5 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 6 | 90553-K0N-D00 | WASHER, PLAIN, 12MM | 2 | |
| 7 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
