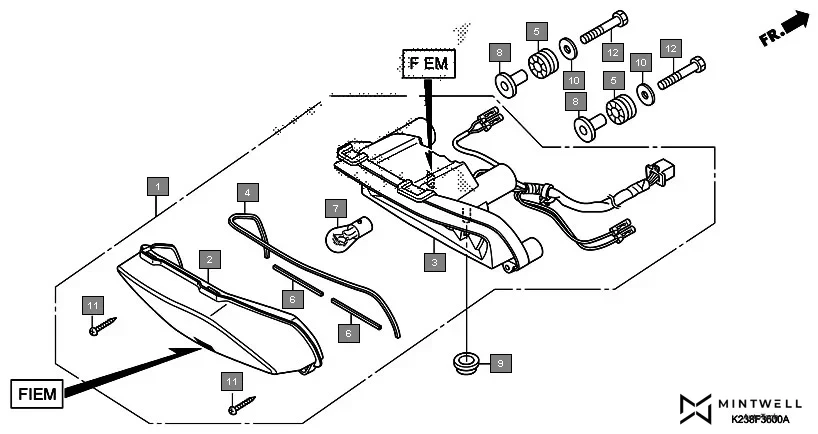

F-36 - TAILLIGHT(FIEM)
HONDA Dream Neo CB110CG · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-K23-901 | TAILLIGHT UNIT(12V 21/5W) | 1 | |
| 2 | 33703-K23-901 | LENS COMP., TAILLIGHT | 1 | |
| 3 | 33704-K23-901 | BASE COMP., TAILLIGHT | 1 | |
| 4 | 33705-K23-901 | PACKING, LENS | 1 | |
| 5 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
| 6 | 33707-K23-901 | PACKING, LENS | 2 | |
| 7 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 8 | 61104-K23-900 | COLLAR, FR. FENDER | 2 | |
| 9 | 83601-MN5-000 | GROMMET SIDE COVER | 1 | |
| 10 | 90401-KTJ-900 | WASHER, 6.3X22X1.2 | 2 | |
| 11 | 93901-24380 | SCREW, TAPPING, 4X12 | 2 | |
