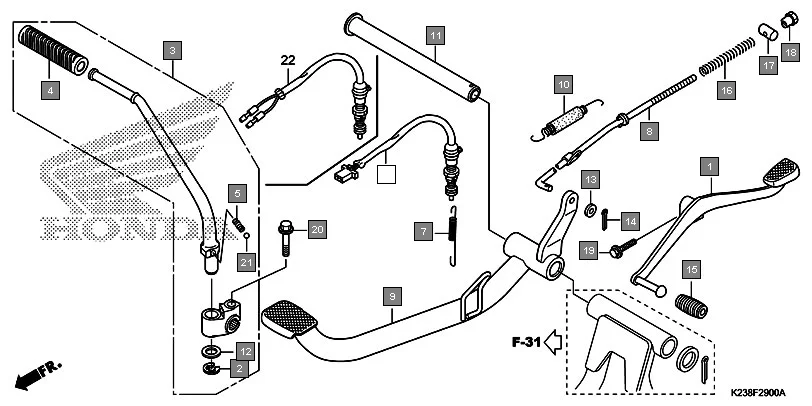

F-29 - PEDAL/KICK STARTER ARM
HONDA Dream Neo CB110CG · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-K14-900 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 28293-333-000 | CLIP, KICK STARTER ARM | 1 | |
| 3 | 28300-K14-900 | ARM ASSY., KICK STARTER | 1 | |
| 4 | 28311-KWS-900 | RUBBER, KICK STARTER | 1 | |
| 5 | 28333-KK0-000 | SPRING, KICK STARTER ARM SET | 1 | |
| 6 | 35350-K23-901 | SWITCH ASSY., RR. STOP(MINDA) | 1 | |
| 6 | 35350-K23-902 | SWITCH ASSY., RR. STOP (JU-SHIN) | 1 | |
| 7 | 35357-K14-900 | SPRING, STOP SWITCH | 1 | |
| 8 | 43451-K23-900 | ROD COMP., RR. BRAKE | 1 | |
| 9 | 46500-K23-900 | PEDAL COMP., BRAKE | 1 | |
| 10 | 46510-K21-900 | SPRING SET, BRAKE PEDAL | 1 | |
| 11 | 50526-K23-900 | SHAFT, MAIN STAND PIVOT | 1 | |
| 12 | 90505-KRM-860 | WASHER, 15.5 X 22 | 1 | |
| 13 | 94101-05800 | WASHER PLAIN 5MM | 1 | |
| 14 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 15 | 95011-40000 | RUBBER, CHANGE PEDAL | 1 | |
| 16 | 95014-73100 | SPRING A BRAKE ROD | 1 | |
| 21 | 96211-08000 | BALL STEEL 8 MM | 1 | |
