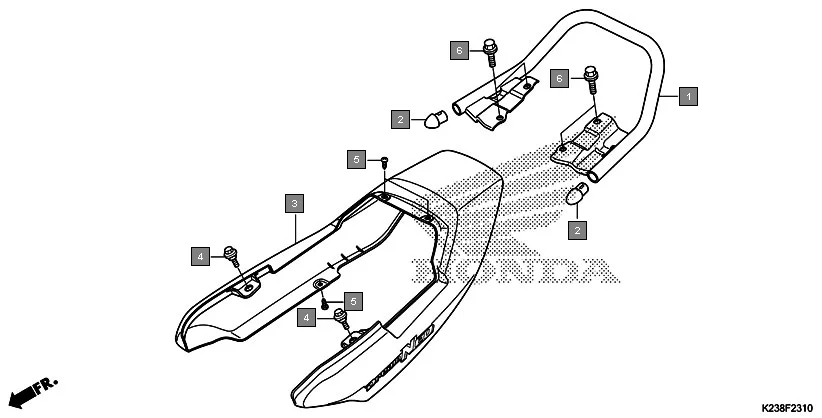

F-23-10 - REAR COWL
HONDA Dream Neo CB110CG · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K23-900 | GRIP COMP., RR. | 1 | |
| 2 | 50415-KTE-910 | CAP, RR. GRIP END | 2 | |
| 3 | 77220-K23-960ZA | COWL SET, RR.(WL)*TYPE5* | 1 | |
| 3 | 77220-K23-900ZD | COWL SET, RR.(WL)*TYPE5* | 1 | |
| 3 | 77220-K23-900ZF | COWL SET, RR.(WL)*TYPE4* | 1 | |
| 3 | 77220-K23-900ZH | COWL SET, RR.(WL)*TYPE3* | 1 | |
| 3 | 77220-K23-900ZJ | COWL SET, RR.(WL)*TYPE2* | 1 | |
| 3 | 77220-K23-900ZK | COWL SET, RR.(WL)*TYPE1* | 1 | |
| 5 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 6 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 4 | |
| 6 | 95702-08012-08 | BOLT, FLANGE, 8X12 | 4 | |
