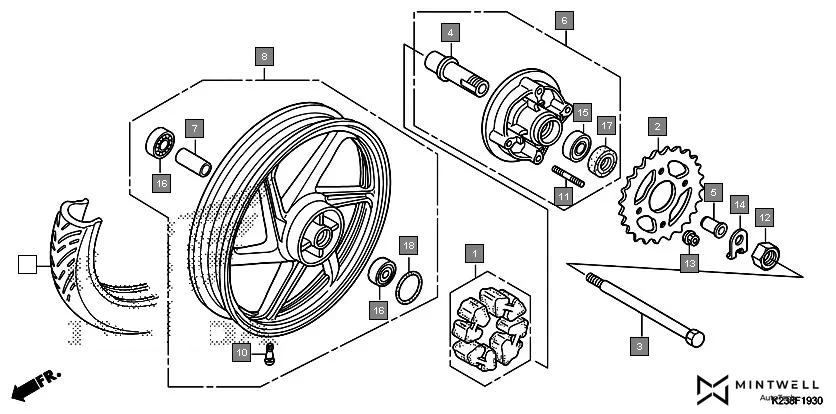

F-19-30 - REAR WHEEL(CAST)
HONDA Dream Neo CB110CG · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KTE-910 | DAMPER SET, WHEEL | 1 | |
| 2 | 41201-K14-900 | SPROCKET, FINAL DRIVEN(41T) | 1 | |
| 3 | 42301-KZA-W00 | AXLE,RR WHEEL | 1 | |
| 4 | 42303-K14-900 | SLEEVE, RR. WHEEL | 1 | |
| 5 | 42304-K14-900 | COLLAR, RR. AXLE SLEEVE | 1 | |
| 6 | 42615-K23-900 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 6 | 42615-K14-900 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 7 | 42620-KTE-950 | COLLAR,RR AXLE DIST | 1 | |
| 8 | 42650-KTE-600ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 42650-K23-910ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 9 | 42711-KTE-601 | TIRE, RR.(MRF) (80/100-18 M/C 54P) | 1 | |
| 9 | 42711-KTE-602 | TIRE, RR.(TVS) (80/100-18 M/C 54P) | 1 | |
| 9 | 42711-K23-913 | TIRE, RR.(DUNLOP) (80/100-18M/C 54P) | 1 | |
| 11 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 12 | 90307-KTE-910 | NUT, RR. AXLE SLEEVE(17MM) | 1 | |
| 13 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 14 | 90559-KTR-900 | WASHER, RR AXLE (LEFT) | 1 | |
| 15 | 91051-K23-902 | BEARING, RADIAL BALL, 6203UU(SKF) | 1 | |
| 15 | 91051-K23-904 | BEARING, RADIAL BALL, 6203UU(FAG) | 1 | |
| 15 | 91051-KWF-901 | BRG.BALL RADIAL 6203 (UU) | 1 | |
| 15 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 | |
| 17 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
| 18 | 91304-704-000 | O-RING 42 MM | 1 | |
