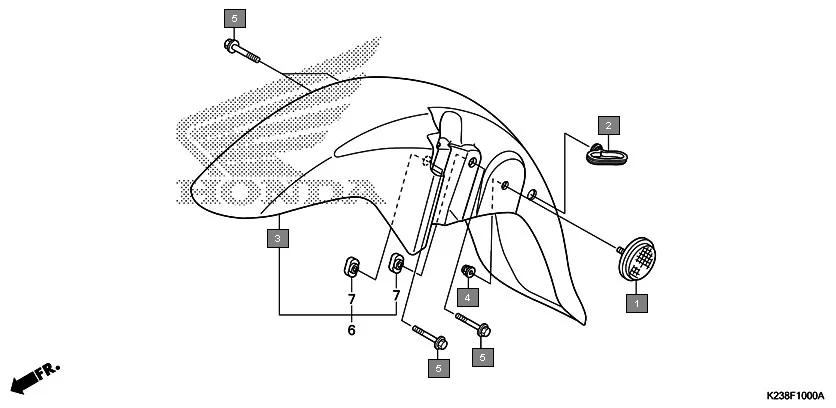

F-10 - FRONT FENDER
HONDA Dream Neo CB110CG · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 3 | 61100-K23-900ZK | FENDER, FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 61100-K23-900ZB | FENDER, FR. *R316M* ALPHA RED METALLIC | 1 | |
| 3 | 61100-K23-900ZE | FENDER, FR. *NH1* BLACK | 1 | |
| 3 | 61100-K23-900ZF | FENDER, FR. *NHB04M* MONSOON GRAY METALLIC | 1 | |
| 3 | 61100-K23-900ZC | FENDER, FR. *PB375M* MIDNIGHT BLUE METALLIC | 1 | |
| 3 | 61100-K23-900ZD | FENDER, FR. *NH411M* FORCE SILVER METALLIC | 1 | |
| 4 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 5 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
