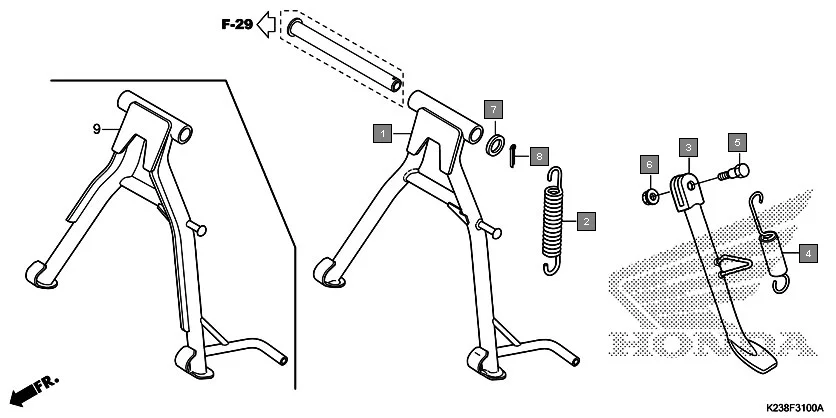

F-31 - STAND
HONDA Dream Neo CB110CE · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-K23-900 | STAND COMP., MAIN | 1 | |
| 2 | 50520-K21-900 | SPRING, MAIN STAND | 1 | |
| 3 | 50530-K14-900 | BAR COMP., SIDE STAND | 1 | |
| 4 | 50532-KZA-W00 | SPRING ASSY., SIDE STAND | 1 | |
| 5 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 7 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 8 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
