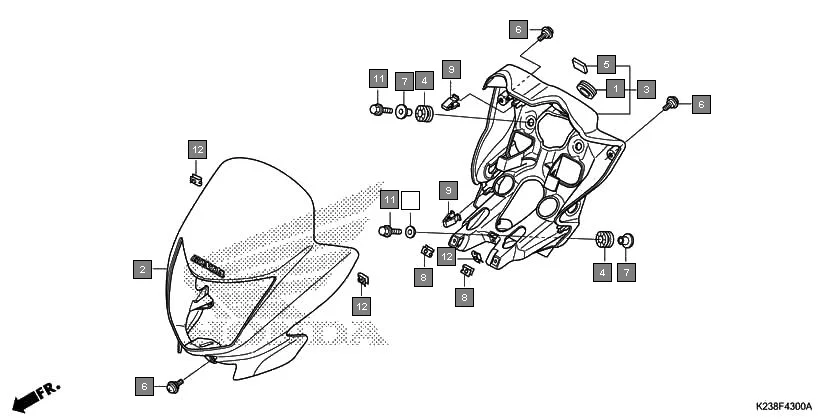

F-43 - FRONT VISOR
HONDA CD 110 Dream CB110C2MG · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37312-KT2-000 | GROMMET, COMBINATION SWITCH | 1 | |
| 2 | 61300-K23-900ZJ | VISOR SET, FR.(WL)*TYPE1* | 1 | |
| 3 | 61310-K23-900 | COVER ASSY., HEADLIGHT RR. | 1 | |
| 4 | 64615-KR1-860 | RUBBER, LOWER COWL MOUNTING | 4 | |
| 5 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 6 | 90101-GE0-000 | SCREW, HINGE PATCH | 3 | |
| 7 | 90310-KWS-900 | COLLAR, FR. COWL | 4 | |
| 8 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 9 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 3 | |
| 10 | 94103-06800 | WASHER, PLAIN 6 MM | 2 | |
| 11 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 4 | |
| 11 | 95702-06022-08 | BOLT, FLANGE, 6X22 | 4 | |
