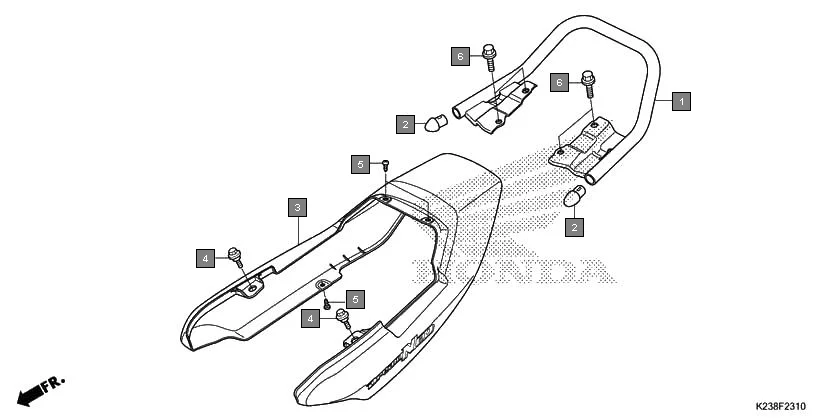

F-23-10 - REAR COWL
HONDA CD 110 Dream CB110C2MG · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K23-900 | GRIP COMP., RR. | 1 | |
| 2 | 50415-KTE-910 | CAP, RR. GRIP END | 2 | |
| 3 | 77220-K63-D00ZA | COWL SET, RR.(WL) *TYPE1* | 1 | |
| 4 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 5 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 6 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 4 | |
| 6 | 95702-08012-08 | BOLT, FLANGE, 8X12 | 4 | |
