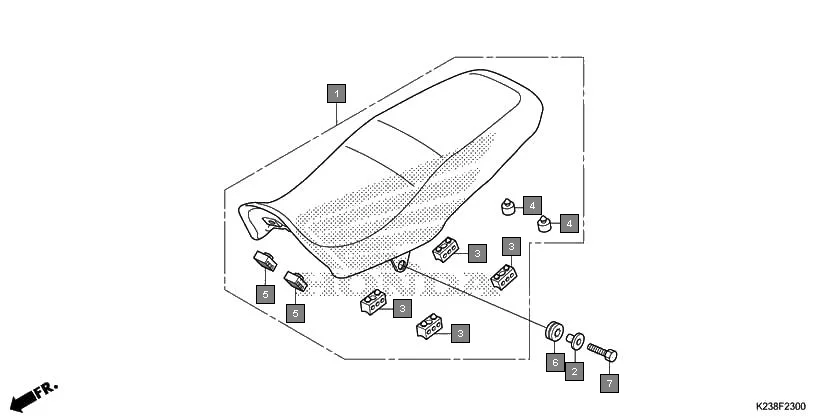

F-23 - SEAT
HONDA CD 110 Dream CB110C2MG · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-K23-900ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 2 | 77201-KYY-900 | COLLAR, SEAT MOUNTING | 2 | |
| 3 | 77204-KYA-600 | RUBBER A, SEAT SETTING | 4 | |
| 4 | 77206-KPP-T00 | RUBBER, SEAT CUSHION | 2 | |
| 5 | 77207-KYA-600 | RUBBER B, SEAT SETTING | 2 | |
| 6 | 77218-KYY-900 | RUBBER, SEAT STAY | 2 | |
| 7 | 92101-08028-0A | BOLT, HEX., 8X28 | 2 | |
