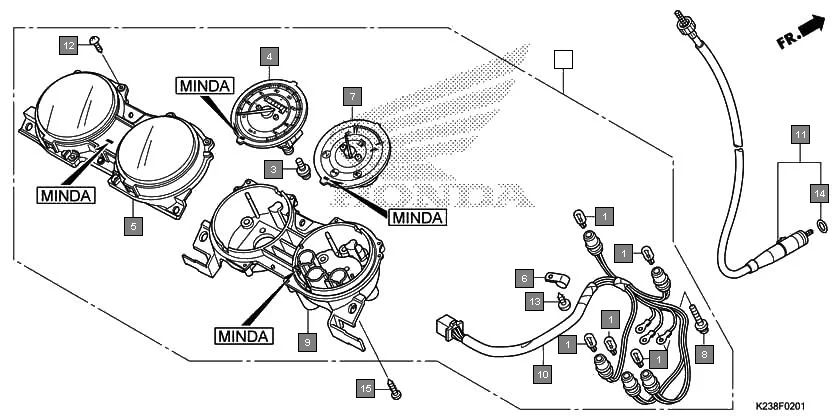

F-2-1 - METER(MINDA)
HONDA CD 110 Dream CB110C2MG · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 5 | |
| 2 | 37100-K23-902 | METER ASSY., COMBINATION(KPH) | 1 | |
| 3 | 37205-KWP-D21 | SCREW-WASHER, SPECIAL, 4X8 | 2 | |
| 4 | 37210-K23-902 | SPEEDOMETER COMP. | 1 | |
| 5 | 37211-K23-902 | LENS | 1 | |
| 6 | 37215-KWP-D21 | CLAMP | 1 | |
| 7 | 37300-K23-902 | METER COMP., FUEL | 1 | |
| 8 | 37305-KWP-D21 | SCREW, 3X22 | 3 | |
| 9 | 37610-K23-902 | CASE ASSY., UNDER | 1 | |
| 10 | 37619-K23-910 | SOCKET COMP. | 1 | |
| 11 | 44830-K14-901 | CABLE COMP., SPEEDOMETER | 1 | |
| 12 | 90101-K23-902 | SCREW, TAPPING(3X13) | 6 | |
| 13 | 90109-K23-902 | SCREW, TAPPING, 4X14 | 1 | |
| 14 | 91256-KK3-840 | O-RING, 10X1.5 | 1 | |
| 15 | 93903-35310 | SCREW TAPPING 5X16 | 3 | |
