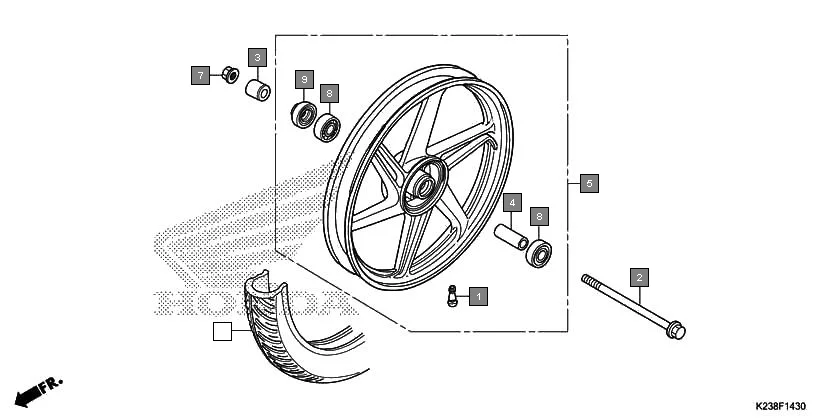

F-14-30 - FRONT WHEEL(CAST)
HONDA CD 110 Dream CB110C2MG · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 2 | 44301-KPL-900 | AXLE, FRONT WHEEL | 1 | |
| 3 | 44311-KSP-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44620-KSP-900 | COLLAR FR AXLE DIST | 1 | |
| 5 | 44650-K63-D00ZA | WHEEL SUB ASSY., FR. *NH35M* CLOUD SILVER METALLIC | 1 | |
| 6 | 44711-K23-913 | TIRE, FR.(DUNLOP) (80/100-18 M/C 47P) | 1 | |
| 6 | 44711-KRY-971 | TYRE,FR | 1 | |
| 6 | 44711-KTE-602 | TIRE, FR.(TVS) (80/100-18 M/C 47P) | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 91052-K23-903 | BEARING, RADIAL BALL, 6301U (NEI) | 2 | |
| 8 | 91052-KWW-A81 | BEARING, RADIAL BALL, 6301U (SKF) | 2 | |
| 8 | 91053-KWW-642 | BEARING, RADIAL BALL, 6301U (FAG) | 2 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
