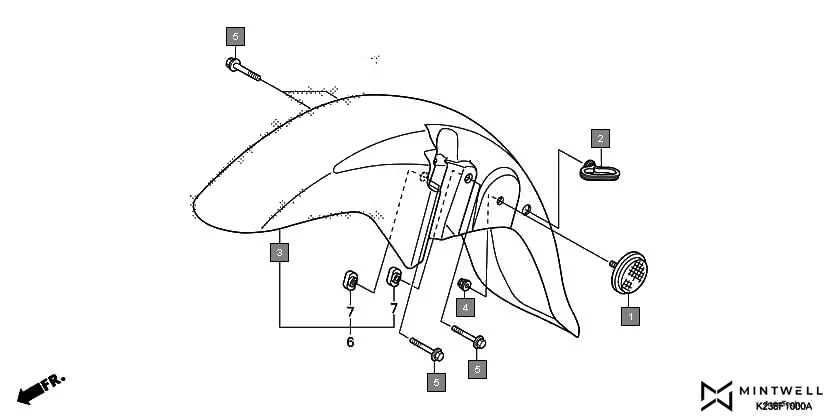

F-10 - FRONT FENDER
HONDA CD 110 Dream CB110C2MG · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 3 | 61100-K63-D00ZA | FENDER, FR. *NH1* BLACK | 1 | |
| 4 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 5 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
