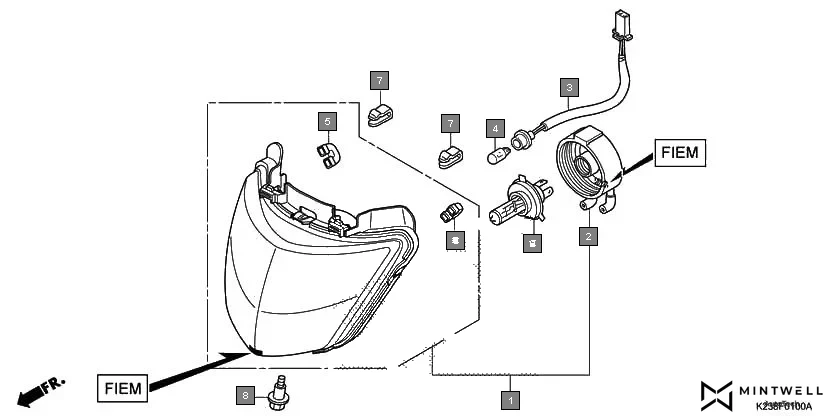

F-1 - HEADLIGHT(FIEM)
HONDA CD 110 Dream CB110C2MG · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-K23-901 | HEADLIGHT UNIT | 1 | |
| 2 | 33112-KWS-901 | COVER, RUBBER | 1 | |
| 3 | 33150-K23-901 | SUB CORD, HEADLIGHT | 1 | |
| 4 | 33301-KYJ-901 | BULB, WEDGE BASE(T10 12V 5W) | 1 | |
| 5 | 33706-KWS-901 | TUBE | 2 | |
| 6 | 34901-KTE-740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 | |
| 6 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 8 | 90103-GW3-980 | BOLT, ADJUSTING | 1 | |
