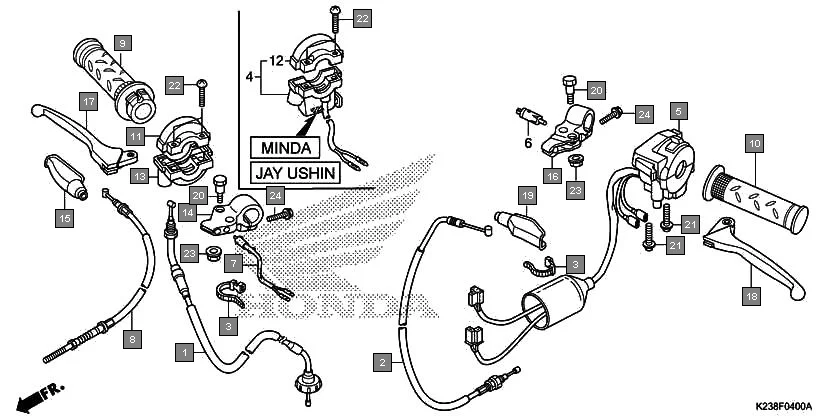

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA CD 110 Dream CB110C2G · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06179-K23-930 | CABLE SET, THROTTLE | 1 | |
| 1 | 06179-K23-940 | CABLE SET, THROTTLE | 1 | |
| 2 | 22870-K14-901 | CABLE COMP., CLUTCH | 1 | |
| 3 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 5 | 35200-K63-D01 | SWITCH ASSY., WINKER | 1 | |
| 7 | 35340-KZA-W01 | SW ASSY. FR STOP | 1 | |
| 8 | 45450-K14-901 | CABLE COMP., FR. BRAKE(HI-LEX) | 1 | |
| 8 | 45450-K23-902 | CABLE COMP., FR. BRAKE (SUPRAJIT) | 1 | |
| 9 | 53140-K14-900 | GRIP COMP., THROTTLE | 1 | |
| 10 | 53166-KSP-900 | GRIP, L. HANDLE | 1 | |
| 11 | 53167-KZA-W00 | HOUSING UP THROT | 1 | |
| 13 | 53168-KZA-W00 | HOUSING,UND THROT | 1 | |
| 14 | 53171-K14-900 | BRACKET, R. HANDLE LEVER | 1 | |
| 15 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 16 | 53172-K14-900 | BRACKET, L. HANDLE LEVER | 1 | |
| 17 | 53175-KYY-900 | LEVER COMP., R. HANDLE | 1 | |
| 18 | 53178-KYY-900 | LEVER COMP., L. HANDLE | 1 | |
| 19 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 20 | 90113-KYY-900 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 21 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 22 | 93500-05022-0G | SCREW, PAN, 5X22 | 2 | |
