F-19-MID-BASE-CUSHION REAR

HeroXTREME 160R(JUNE,2025) · 3 parts

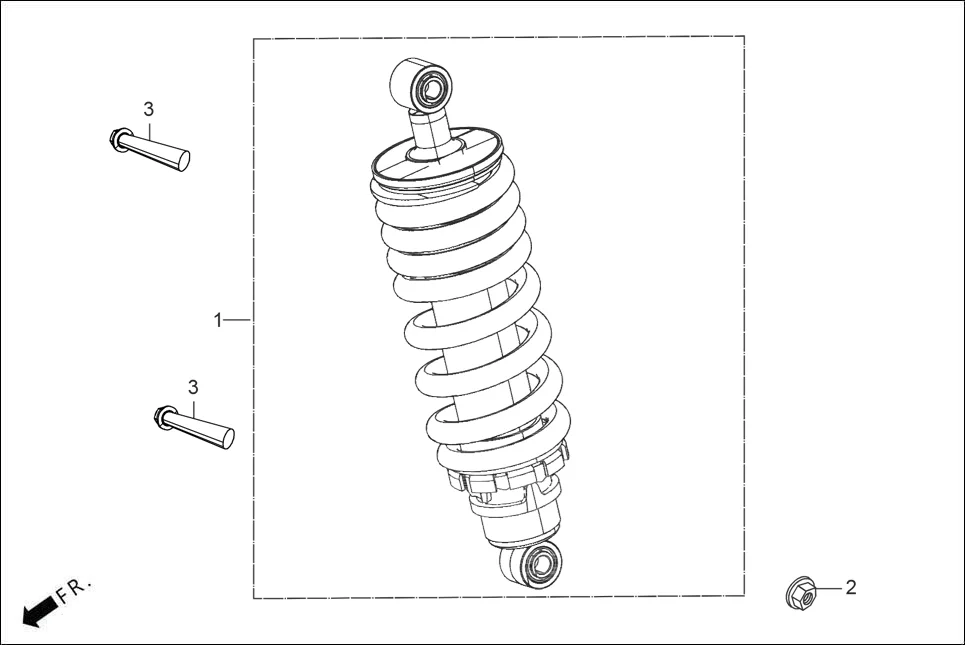

F-19-MID-BASE CUSHION REAR assembly diagram for Hero XTREME 160R(JUNE,2025)

Parts in This Assembly (3)

Ref #Part NumberDescriptionQty
152400-ABZ-000CUSHION ASSY. REAR1
290304-KST-942NUT FLG.PT 10MM1
390159-AAB-A00BOLT FLANGE 10X502
