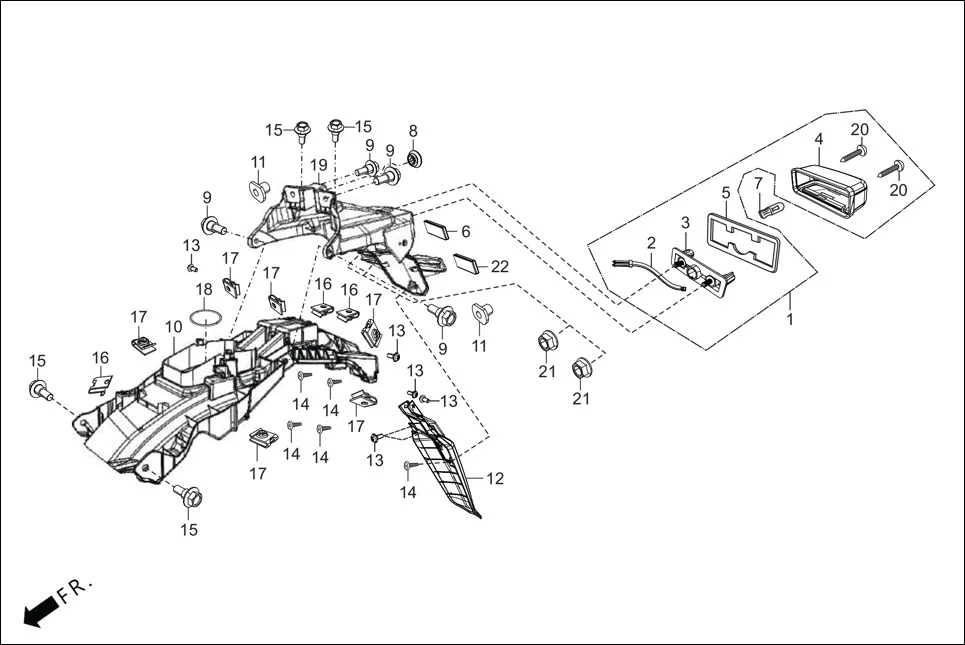

F-20-REAR FENDER
HeroXTREME 160 4V PREMIUM(August,2023) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3372B-AAG-30099 | LIGHT ASSY LICENSE | 1 | |
| 2 | 33721-AAG-00099 | SOCKET COMP DOMESTIC | 1 | |
| 3 | 33722-AAG-00099 | BASE COMP | 1 | |
| 4 | 33723-AAG-00099 | COVER COMP | 1 | |
| 5 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 6 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 7 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 8 | 83601-MN5-000 | GROMMET SIDE COVER | 1 | |
| 9 | 90111-06017-00 | BOLT FLANGE 6MM | 4 | |
| 10 | 80120-ABZ-000 | REAR FENDER A | 1 | |
| 11 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 12 | 80150-AAB-A00 | REAR FENDER C | 1 | |
| 13 | 93903-34210 | SCREW TAPPING 4X10 | 5 | |
| 14 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 15 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 16 | 90311-MT3-000 | NUT, CLIP, 6 MM | 3 | |
| 17 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 18 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 19 | 80100-ABZ-000R | REAR FENDER B | 1 | |
| 20 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 21 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 22 | 33741-ABZ-001 | REFLEX REFLECTOR REAR | 1 |
