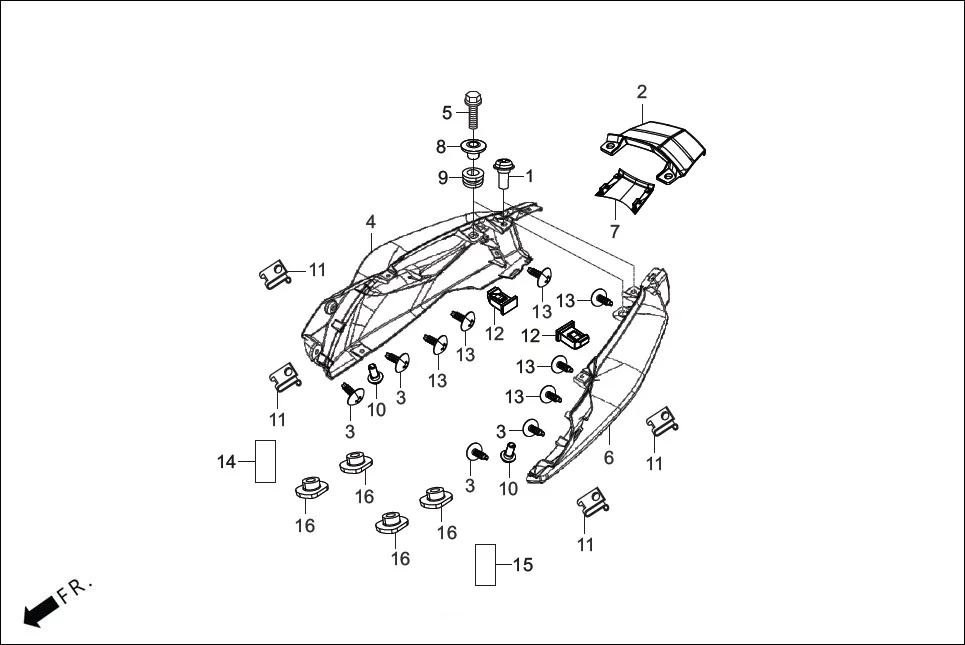

F-10A-BODY COVER(R./L. COWLS)
HeroXTREME 160 4V PREMIUM(August,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 2 | 77446-ABZ-000F | CENTRE RR COWL UPR (MATT SLATE BLACK) | 1 | |
| 3 | 93903-34210 | SCREW TAPPING 4X10 | 4 | |
| 4 | 77346-ABZ-000F | RR COWL R (MATT SLATE BLACK) | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 6 | 77356-ABZ-000F | RR COWL L (MATT SLATE BLACK) | 1 | |
| 7 | 77456-ABZ-000F | CENTRE RR COWL LWR (MATT SLATE BLACK) | 1 | |
| 8 | 80111-KVN-900 | COLLAR, RR. FENDER | 2 | |
| 9 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 10 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 11 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 12 | 90683-ABZ-000 | SLIDE CLIP | 2 | |
| 13 | 93903-34310 | SCREW TAPPING M4X12 | 6 | |
| 14 | 77347-ACR-000 | STAY RR COWL R | 1 | |
| 15 | 77357-ACR-000 | STAY RR COWL L | 1 | |
| 16 | 90311-AAA-000 | NUT REAR FENDER | 4 |
