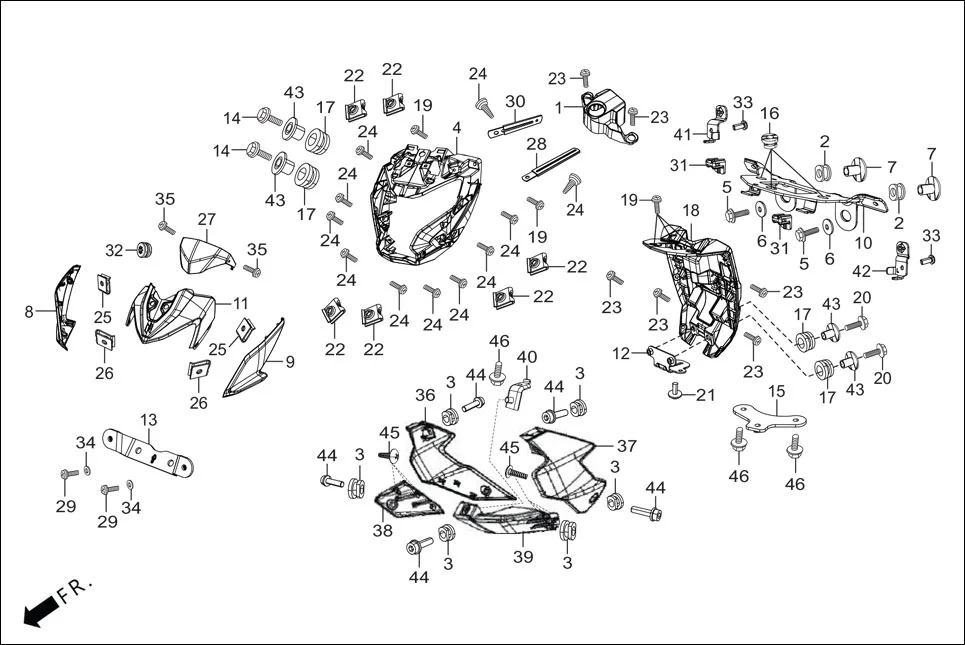

F-1A-FAIRING(FR. VISOR/COWL/STAY)
HeroXTREME 160 4V PREMIUM(August,2023) · 50 parts
Parts in This Assembly (50)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53252-ABZ-600 | COVER MAIN SWITCH | 1 | |
| 2 | 61103-KVE-860 | RUBBER,FR COWL MOUNT | 2 | |
| 3 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 6 | |
| 4 | 61301-ACR-000 | FRONT COWL | 1 | |
| 5 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 6 | 90563-355-000 | WASHER, WHEEL, 6 MM | 2 | |
| 7 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 8 | 61322-ACR-000C | SIDE COVER R FR COWL (SHOOTING NIGHT STAR ME.) | 1 | |
| 8 | 61322-ACR-000G | SIDE COVER R FR COWL (PEARL BLACK) | 1 | |
| 9 | 61323-ACR-000C | SIDE COVER L FR COWL (SHOOTING NIGHT STAR ME.) | 1 | |
| 9 | 61323-ACR-000G | SIDE COVER L FR COWL (PEARL BLACK) | 1 | |
| 10 | 61312-ACR-000 | STAY METER MOUNTING | 1 | |
| 11 | 6430A-ACR-000 | FRONT COWL UPPER A SUB ASSY | 1 | |
| 12 | 61313-ACR-000 | BRKT INNER PANEL SUPPORT | 1 | |
| 13 | 64315-ACR-000 | STAY FR NUMBER PLATE | 1 | |
| 14 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
| 15 | 64332-ACR-000 | STAY AIMING | 1 | |
| 16 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 17 | 80112-KVN-900 | RUBBER, RR FENDER | 4 | |
| 18 | 83402-ACR-000 | PANEL INNER | 1 | |
| 19 | 90101-GE0-000 | SCREW, HINGE PATCH | 9 | |
| 20 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 21 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 1 | |
| 22 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 23 | 91509-KWA-830 | SCREW, PAN 5X18.5 | 6 | |
| 24 | 93903-34210 | SCREW TAPPING 4X10 | 15 | |
| 25 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 26 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 27 | 64302-ACR-000 | FRONT COWL UPPER | 1 | |
| 28 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 29 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 30 | 94591-27000 | CLIP 2 X 70 | 1 | |
| 31 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 32 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 1 | |
| 33 | 93500-05010-0G | SCREW PAN 5X10 | 2 | |
| 34 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 35 | 93500-05012-1G | SCREW,PAN,5 X 12 | 2 | |
| 36 | 64350-ACR-300C | SET COWL UNDER R (SHOOTING NIGHT STAR ME.) | 1 | |
| 36 | 64350-ACR-300F | SET COWL UNDER R (MATT SLATE BLACK) | 1 | |
| 37 | 64360-ACR-300C | SET COWL UNDER L (SHOOTING NIGHT STAR ME.) | 1 | |
| 37 | 64360-ACR-300F | SET COWL UNDER L (MATT SLATE BLACK) | 1 | |
| 38 | 64300-ABZ-B00 | COWL UNDER CENTER R | 1 | |
| 39 | 64400-ABZ-B00 | COWL UNDER CENTER L | 1 | |
| 40 | 64411-ABZ-B00 | STAY CENTER UNDER COWL | 1 | |
| 41 | 61422-ACR-000 | HEAD LIGHT STAY RH | 1 | |
| 42 | 61423-ACR-000 | HEAD LIGHT STAY LH | 1 | |
| 43 | 80111-KVN-900 | COLLAR, RR. FENDER | 4 | |
| 44 | 90102-KVN-900 | BOLT, SP. FLANGE SOCKET 6 X 22 | 6 | |
| 45 | 93903-34310 | SCREW TAPPING M4X12 | 6 | |
| 46 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 3 |
