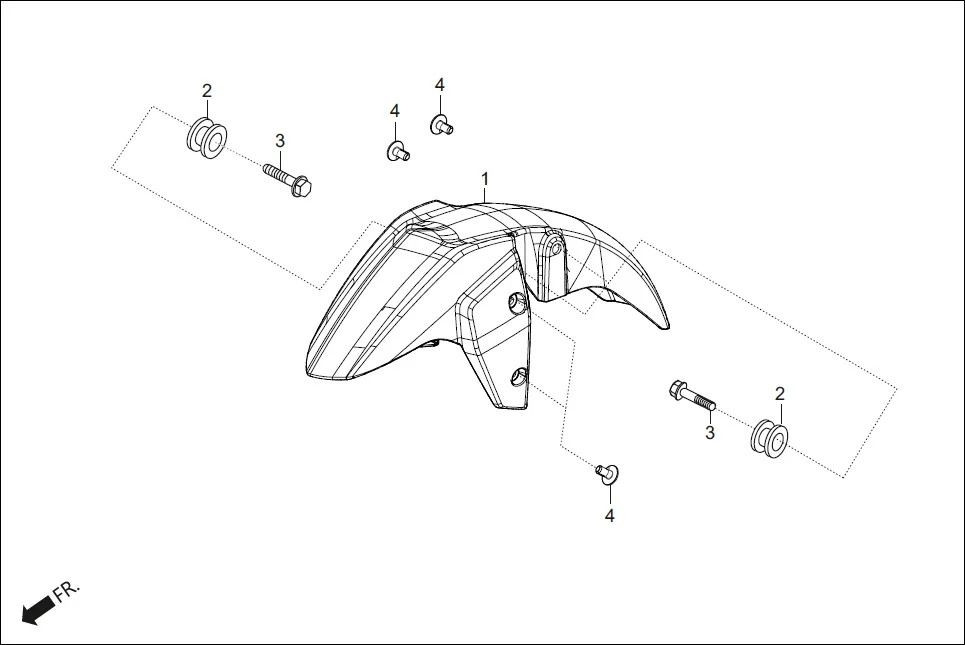

F-5 - FRONT FENDER
Hero XTREME 160R(JULY,2025) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61101-ABZ-000T | FRONT FENDER (MAT AXIS GRAY ME.) | 1 | |
| 2 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
| 3 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
