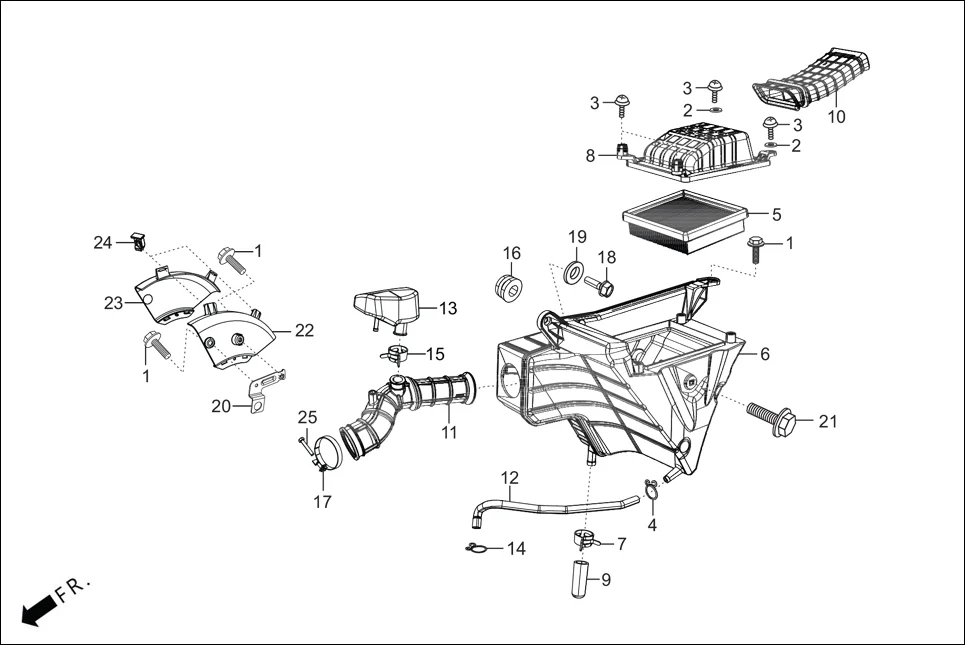

F-13 - AIR CLEANER
Hero XTREME 160R(JULY,2025) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 2 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 3 | 93500-05016-0A | SCREW, PAN, 5 X 16 | 4 | |
| 4 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 5 | 17208-AAB-A00 | ELEMENT COMP AIR/C | 1 | |
| 6 | 17210-ABZ-000 | CASE COMP AIR/C | 1 | |
| 7 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 8 | 17220-ABZ-000 | COVER AIR/C CASE | 1 | |
| 9 | 17227-ABA-000 | V.TUBE 11X15X40 | 1 | |
| 10 | 17219-ABZ-000 | DUCT AIR/C | 1 | |
| 11 | 17222-ABZ-000 | TUBE AIR/C CONNECTOR | 1 | |
| 12 | 17371-ABZ-B00 | BREATHER TUBE | 1 | |
| 13 | 17311-ABZ-000 | RESONATOR | 1 | |
| 14 | 15772-KTN-900 | CLIP BREATHER TUBE | 1 | |
| 15 | 19509-GE2-003 | CLAMP, D19 TUBE | 1 | |
| 16 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 | |
| 17 | 16218-ABZ-000 | BAND INSUATOR | 1 | |
| 18 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 19 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 20 | 50195-ABZ-000 | STAY AIR DUCT | 1 | |
| 21 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 22 | 17702-ABZ-000 | COOLING DUCT LH | 1 | |
| 23 | 17703-ABZ-000 | COOLING DUCT RH | 1 | |
| 24 | 90683-ABZ-000 | SLIDE CLIP | 2 | |
| 25 | 90006-MEE-000 | BOLT RECESSED 5 X 30 | 1 | |
