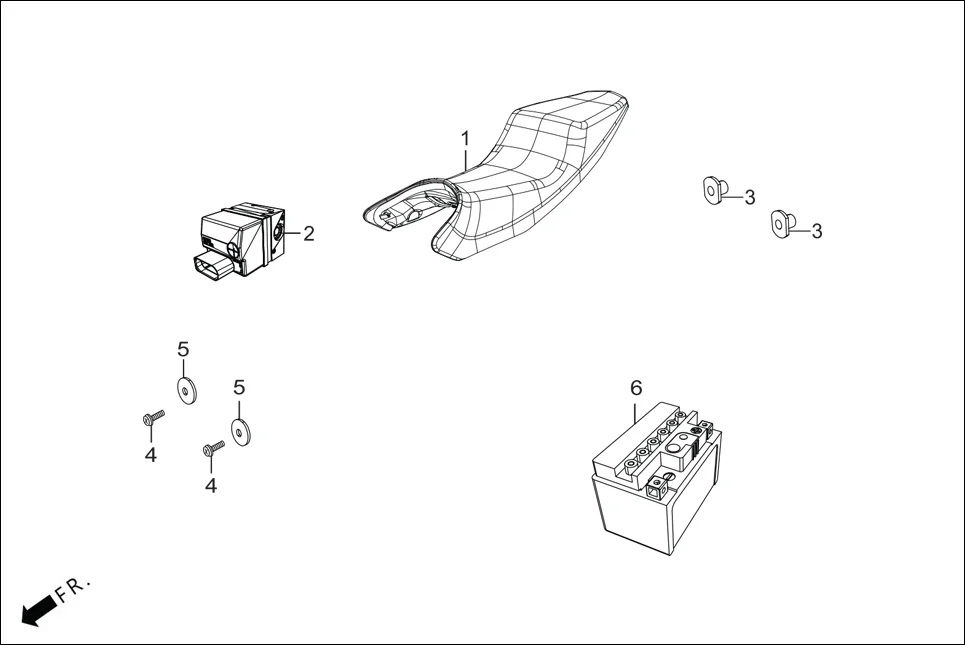

F-29A - SEAT (OPTIONAL)
Hero XTREME 160R(JULY,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 99633-ABZ-000 | SEAT COVER XTREME160 XTEC | 1 | |
| 1 | 99630-ABZ-000 | COVER ASSY. SEAT | 1 | |
| 1 | 99631-ABZ-000 | COVER ASSY. SEAT | 1 | |
| 1 | 99632-ABZ-000 | COVER ASSY. SEAT | 1 | |
| 2 | 57111-ACR-000 | HECU MINIMAB SPD | 1 | |
| 3 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 4 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 5 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 6 | 31500-KRP-801 | BATTERY ASSY | 1 | |
