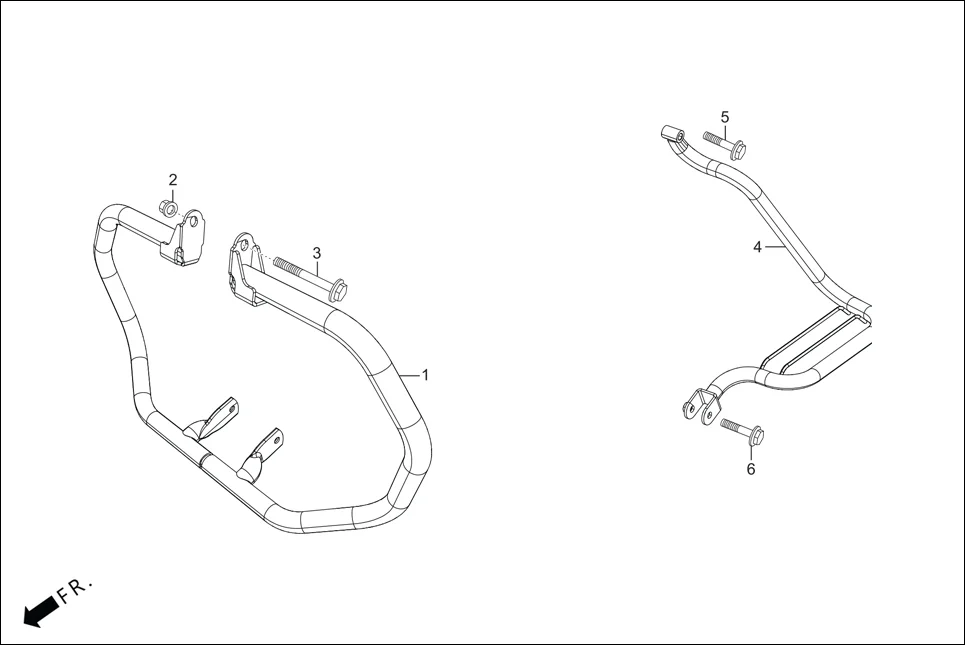

F-28 - GUARD FRONT (OPTIONAL)
Hero XTREME 160R(JULY,2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | NOT SERVICEABLE | GUARD ENGINE | 1 | |
| 2 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 3 | 95801-08090-00 | BOLT FLANGE 8X90 | 1 | |
| 4 | 51104-ABZ-000 | STEP WOMEN | 1 | |
| 5 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 1 | |
| 6 | 95801-08038-07 | BOLT FLANGE 8X38 | 1 | |
