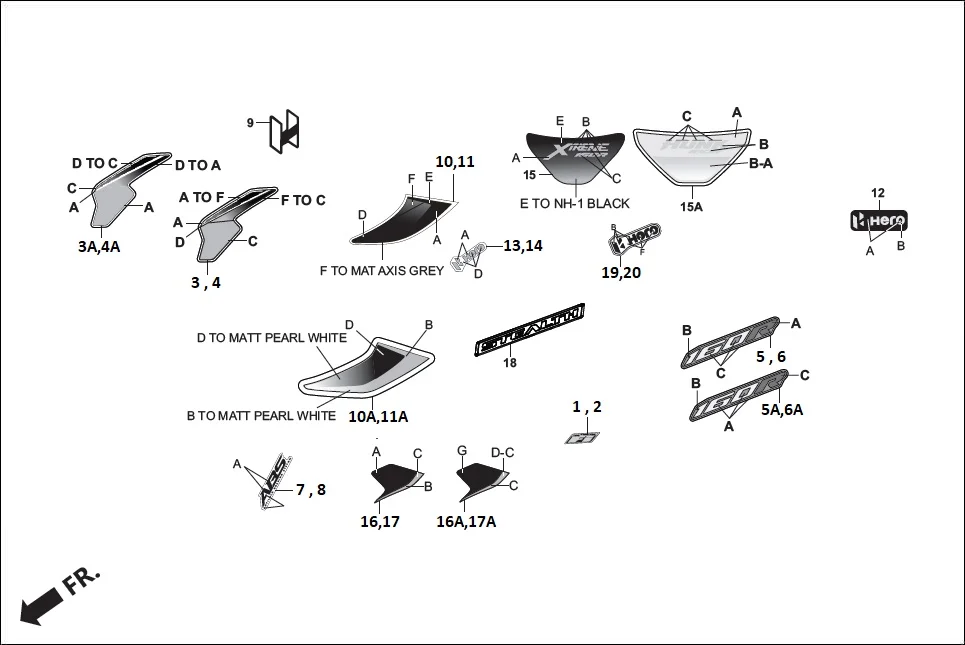

F-27 - STRIPES/MARK
Hero XTREME 160R(JULY,2025) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 2 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 3 | 86673-ABZ-600T | STRIPE R FR COWL (TYPE-1) | 1 | |
| 3 | ABZZS6B0050DZG | STRIPE COWL FRONT RH (TYPE-1) | 1 | |
| 4 | 86674-ABZ-600T | STRIPE L FR COWL (TYPE-1) | 1 | |
| 4 | ABZZS6B0060DZG | STRIPE COWL FRONT LH (TYPE-1) | 1 | |
| 5 | ABZWS6B0000DYG | STRIPE A COVER R SIDE (TYPE-1) | 1 | |
| 5 | ABZZS6B0090DZG | STRIPE COWL REAR RH (TYPE-1) | 1 | |
| 6 | ABZWS6B0010DYG | STRIPE A COVER L SIDE (TYPE-1) | 1 | |
| 6 | ABZZS6B0100DZG | STRIPE COWL REAR LH (TYPE-1) | 1 | |
| 7 | 86780-ABZ-000S | MARK DISC FORK ASSY R FR (TYPE-2) | 1 | |
| 8 | 86880-ABZ-000S | MARK DISC FORK ASSY L FR (TYPE-2) | 1 | |
| 9 | 86840-AAN-B00 | EMBLEM BEZEL,FR COWL | 1 | |
| 10 | 86881-ABZ-600T | STRIPE TANK COVER R SIDE (TYPE-1) | 1 | |
| 10 | ABZZS6B0020DZG | STRIPE A TANK COVER SIDE RH (TYPE-1) | 1 | |
| 11 | 86882-ABZ-600T | STRIPE TANK COVER L SIDE (TYPE-1) | 1 | |
| 11 | ABZZS6B0030DZG | STRIPE A TANK COVER SIDE LH (TYPE-1) | 1 | |
| 12 | 87117-ABZ-000S | MARK HERO RR FENDER B (TYPE-2) | 1 | |
| 13 | 86885-ABZ-600T | MARK HERO TANK COVER R SIDE (TYPE-1) | 1 | |
| 14 | 86886-ABZ-600T | MARK HERO TANK COVER L SIDE (TYPE-1) | 1 | |
| 15 | 86889-ABZ-600T | STRIPE TANK COVER RR (TYPE-1) | 1 | |
| 15 | ABZZS6B0040DZG | STRIPE COVER TANK REAR (TYPE-1) | 1 | |
| 16 | 86893-ABZ-B00R | STRIPE COWL UNDER R (TYPE-1) | 1 | |
| 16 | ABZZS6B0070DZG | STRIPE COWL UNDER RH (TYPE-1) | 1 | |
| 17 | 86894-ABZ-B00R | STRIPE COWL UNDER L (TYPE-1) | 1 | |
| 17 | ABZZS6B0080DZG | STRIPE COWL UNDER LH (TYPE-1) | 1 | |
| 18 | 83833-ABH-700 | EMBLEM STEALTH | 1 | |
| 19 | ABZZS6B0010DZG | MARK HERO LH (TYPE-1) | 1 | |
| 20 | ABZZS6B0000DZG | MARK HERO RH (TYPE-1) | 1 | |
