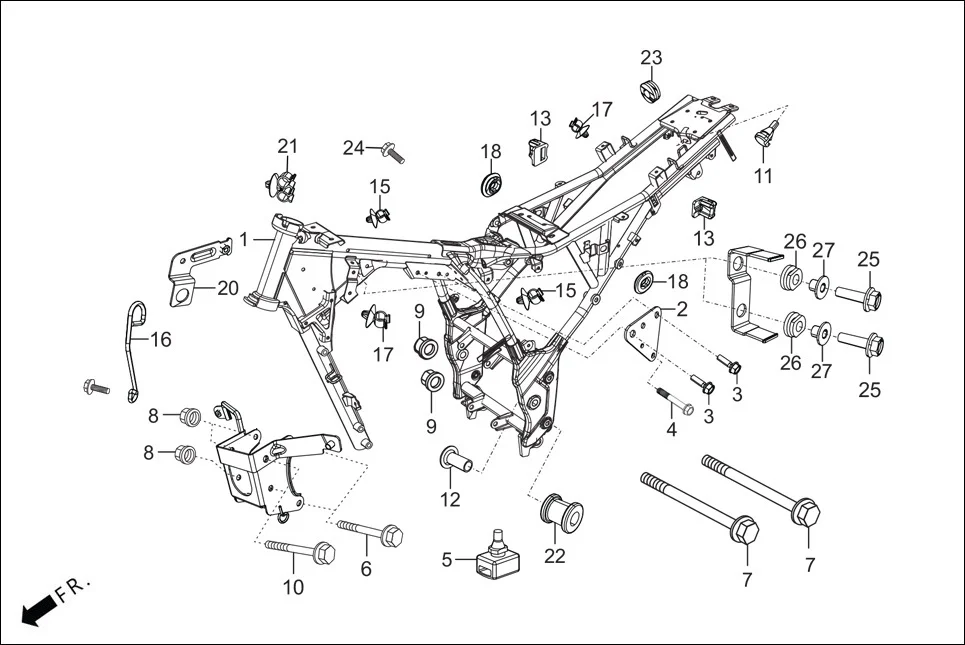

F-25-DRUM - FRAME BODY
Hero XTREME 160R(JULY,2025) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-ABZ-J00 | FRAME BODY COMP | 1 | |
| 2 | 50353-ABZ-000 | BRKT ENGINE HANGER UP | 1 | |
| 3 | 95701-08014-00 | BOLT FLANGE 8X14 | 2 | |
| 4 | 95802-08055-0 | BOLT FLANGE 8X55 | 1 | |
| 5 | 50505-ABZ-000 | RUBBER STAND STOPPER | 1 | |
| 6 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 2 | |
| 7 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 8 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
| 9 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 10 | 95801-08095-00 | BOLT, FLANGE, 8 X 95 | 2 | |
| 11 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 12 | 18442-ABZ-000 | COLLAR MUFF MOUNT | 1 | |
| 13 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 15 | 50157-AAF-400 | CLIP HARNESS | 2 | |
| 16 | 50191-ABZ-B00 | GUIDE CLUTCH CABLE | 1 | |
| 17 | 50193-ABZ-000 | CLIP THROTTLE CABLE | 3 | |
| 18 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 20 | 50195-ABZ-000 | STAY AIR DUCT | 1 | |
| 21 | 50193-ABZ-600 | CLIP CABLE | 1 | |
| 22 | 18421-ABZ-000 | RUBBER, MUFF. MOUNT | 1 | |
| 23 | 61106-ACR-400 | RUBBER TAIL LAMP MOUNT | 2 | |
| 24 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 25 | 95701-05018-00 | BOLT,FLANGE,5X18 | 2 | |
| 26 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 2 | |
| 27 | 90502-ACR-400 | COLLAR FLANGE 5MM | 2 | |
