F-22 - TAIL LIGHT

Hero XTREME 160R(JULY,2025) · 3 parts

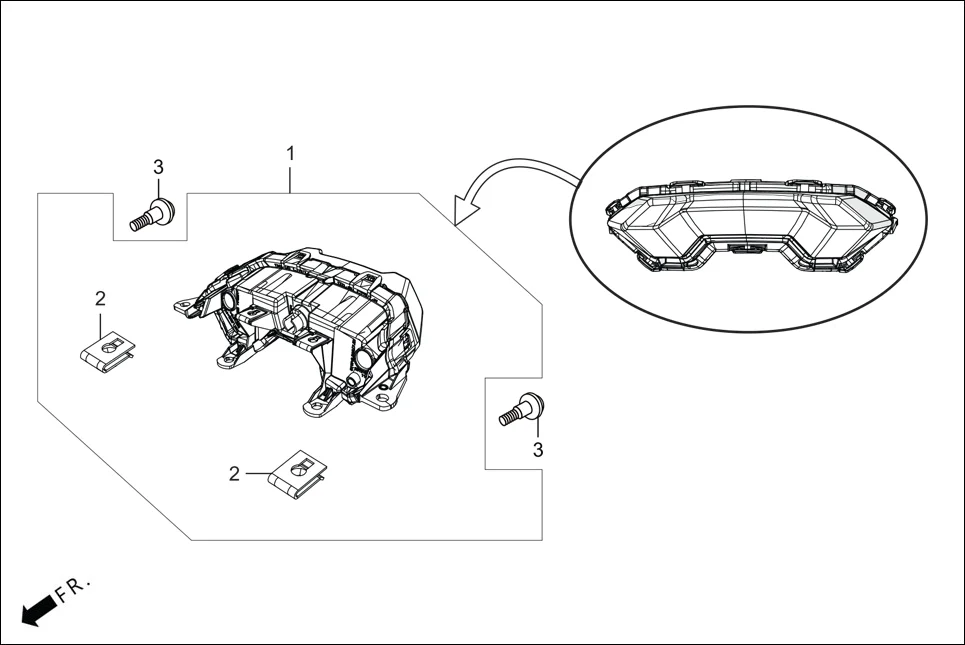

F-22 TAIL LIGHT assembly diagram for Hero XTREME 160R(JULY,2025)

Parts in This Assembly (3)

Ref # Part Number Description Qty
1 33700-ACR-401 UNIT TAIL LIGHT 1
2 90311-AAF-401 SPEED NUT (M6) 2
3 90101-GE0-000 SCREW, HINGE PATCH 2
