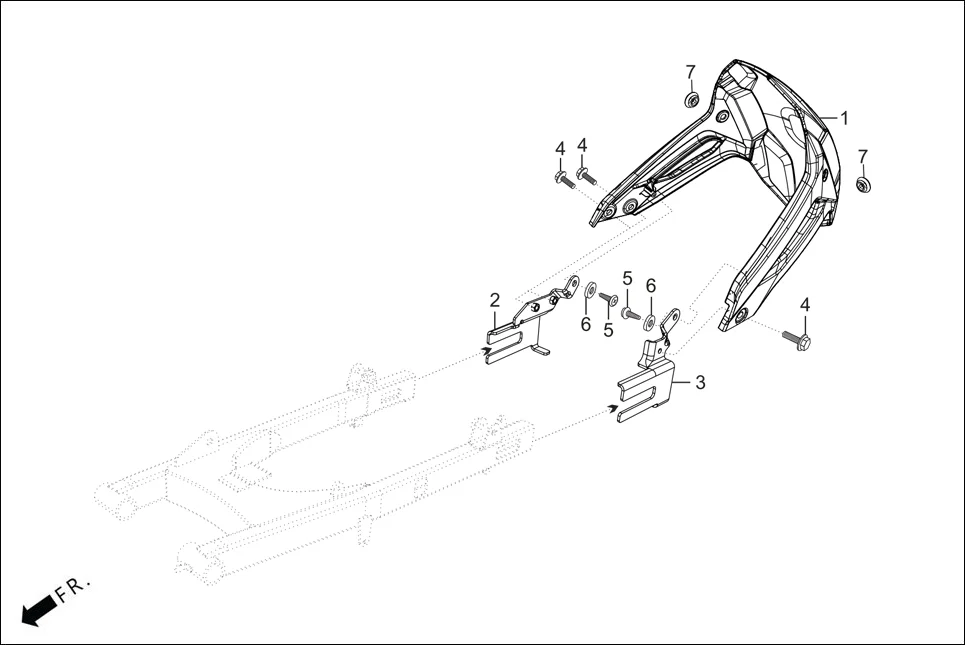

F-20A - REAR HUGGER FENDER
Hero XTREME 160R(JULY,2025) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80125-ABZ-000 | REAR HUGGER FENDER | 1 | |
| 2 | 52107-AAB-A00 | STAY HUGGER FENDER RH | 1 | |
| 3 | 52108-AAB-A00 | STAY HUGGER FENDER LH | 1 | |
| 4 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 5 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 6 | 94102-08700 | WASHER PLAIN 8MM | 2 | |
| 7 | 90862-AAB-300 | PLUG,FLY SCREEN | 2 | |
