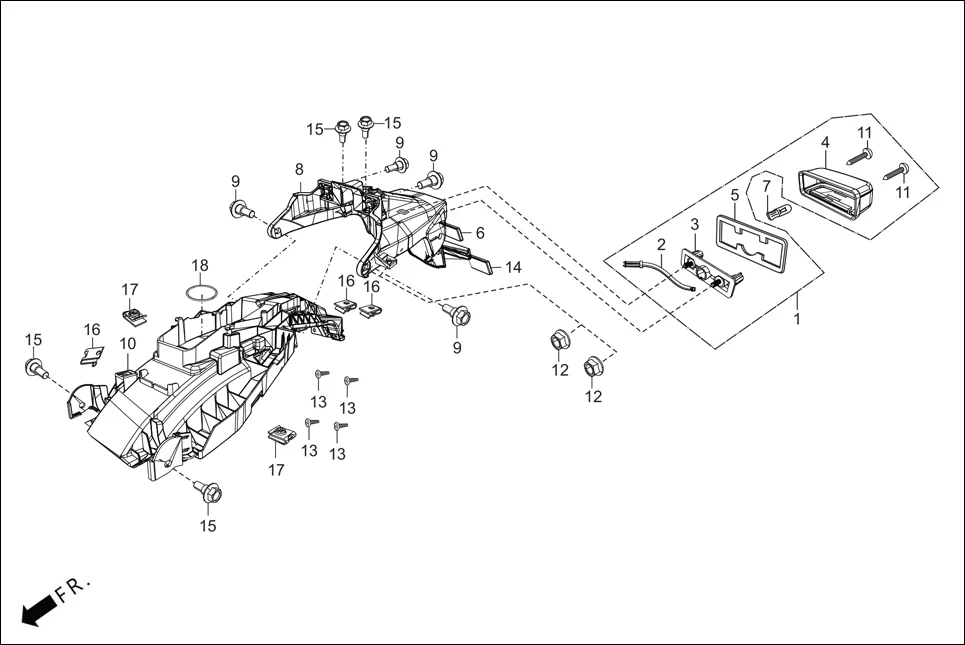

F-20 - REAR FENDER
Hero XTREME 160R(JULY,2025) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3372B-AAG-30099 | LIGHT ASSY LICENSE | 1 | |
| 2 | 33721-AAG-00099 | SOCKET COMP DOMESTIC | 1 | |
| 3 | 33722-AAG-00099 | BASE COMP | 1 | |
| 4 | 33723-AAG-00099 | COVER COMP | 1 | |
| 5 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 6 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 7 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 8 | ACRES6A0080EEG | SET REAR FENDER B (MET. AERIS BROWN - MATT) | 1 | |
| 8 | 80150-AAB-A00 | REAR FENDER C | 1 | |
| 9 | 90111-06017-00 | BOLT FLANGE 6MM | 4 | |
| 10 | 80120-ACR-400 | REAR FENDER A | 1 | |
| 11 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 12 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 13 | 93903-34210 | SCREW TAPPING 4X10 | 4 | |
| 15 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 16 | 90311-MT3-000 | NUT, CLIP, 6 MM | 3 | |
| 17 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 18 | 80123-KCC-870 | BAND, TOOL | 1 | |
