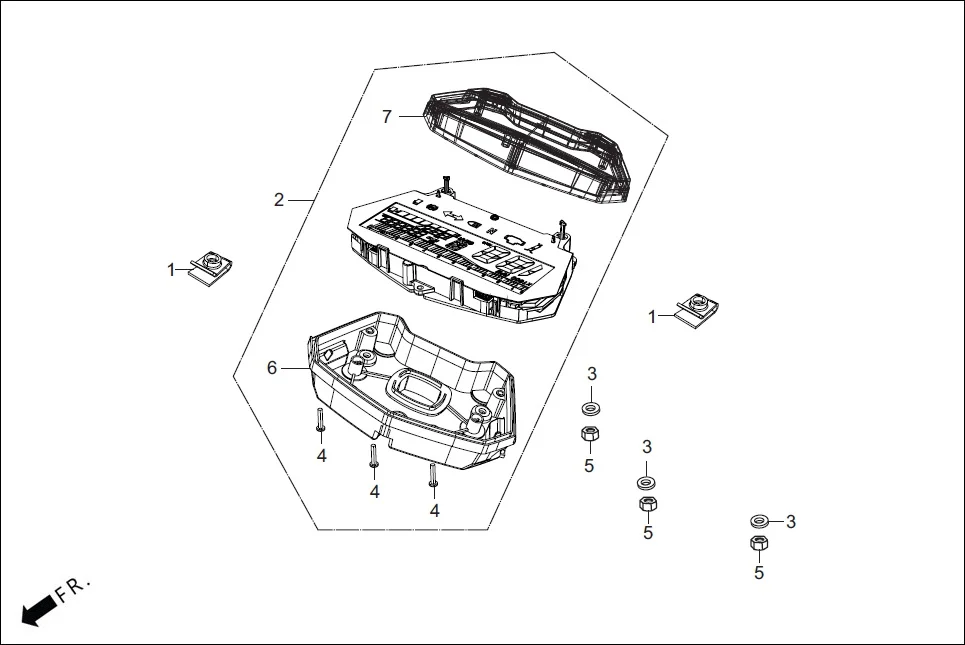

F-2 - SPEEDOMETER / CABLE
Hero XTREME 160R(JULY,2025) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 2 | ABZZA7Y000000G | METER COMB ASSY | 1 | |
| 3 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 4 | 37203-KWA-831 | SCREW TAPPING 3X14 | 3 | |
| 5 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 6 | 37112-ACL-001 | LOWER CASE ASSY | 1 | |
| 7 | 37113-ACL-001 | UPPER CASE ASSY | 1 | |
