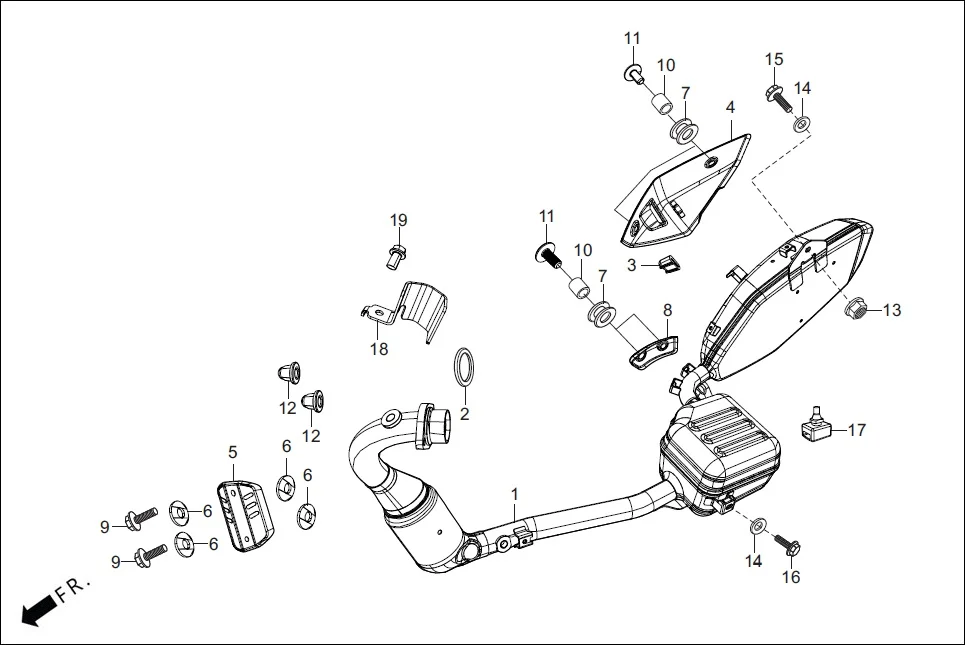

F-14 - MUFFLER
Hero XTREME 160R(JULY,2025) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18300-ABZ-M00 | MUFFLER COMP EXHAUST | 1 | |
| 2 | 18291-KRY-930 | GASKET, EXHAUST PIPE | 1 | |
| 3 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 4 | 18312-ABZ-000 | ASSY COVER MUFFLER | 1 | |
| 5 | 18315-ABZ-B00 | COVER CAT PROTECTOR | 1 | |
| 6 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
| 7 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 4 | |
| 8 | 18314-ABZ-000 | COVER MUFFLER-2 | 1 | |
| 9 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 2 | |
| 10 | 33619-459-840A | COLLAR,WINKER STAY | 4 | |
| 11 | 90107-ABZ-000 | SCREW MUFF. PROTECTOR | 4 | |
| 12 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 13 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 14 | 94103-08700 | WASHER PLAIN 8MM | 2 | |
| 15 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 1 | |
| 16 | 90019-ABZ-000 | BOLT FLANGE 8X41.5 | 1 | |
| 17 | 50505-ABZ-000 | RUBBER STAND STOPPER | 1 | |
| 18 | ABZZE1J003000G | PROTECTOR SENSOR OXYGEN | 1 | |
| 19 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 1 | |
