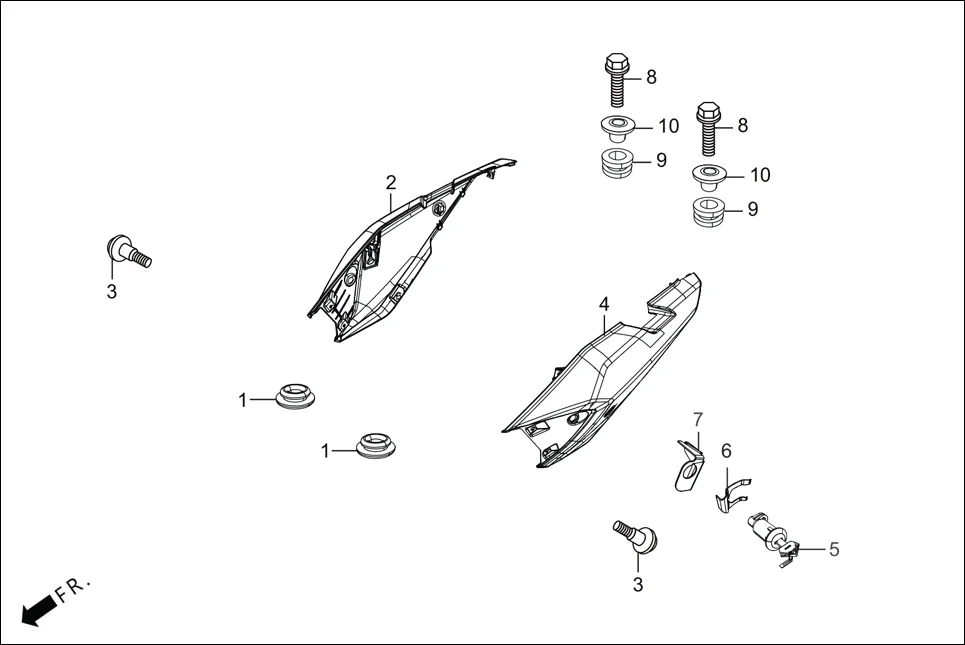

F-12 - SIDE COVER
Hero XTREME 160R(JULY,2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 2 | 77246-ACR-400V | SET COVER R SIDE (BLACK NH-1) | 1 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 4 | 77256-ACR-400V | SET COVER L SIDE (BLACK NH-1) | 1 | |
| 5 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 6 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 7 | 77244-ABZ-000 | STAY SEAT LOCK CABLE | 1 | |
| 8 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 9 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 10 | 80111-KVN-900 | COLLAR, RR. FENDER | 2 | |
| 11 | 93903-25320 | SCREW, TAPPING, 5 X 16 | 4 | |
| 12 | 77447-ACR-400 | STAY RR COWL R | 2 | |
| 13 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 4 | |
