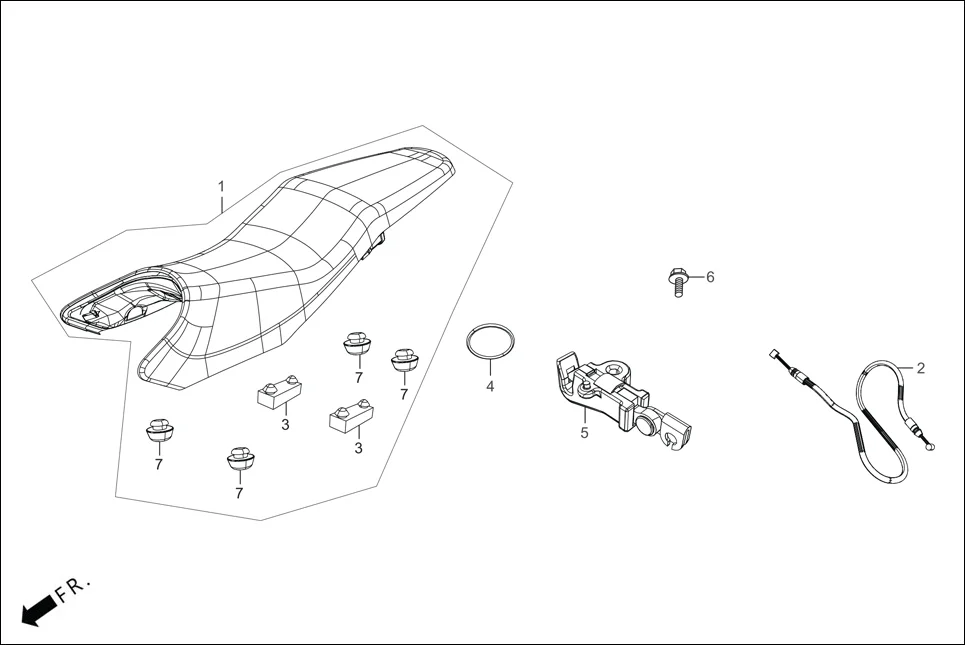

F-10 - SEAT ASSY.
Hero XTREME 160R(JULY,2025) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-ABZ-J00 | SEAT COMP. DOUBLE | 1 | |
| 2 | 77156-ACR-400 | CABLE SEAT LOCK | 1 | |
| 3 | 77205-KTN-700 | RUBBER B, SEAT SETTING | 2 | |
| 4 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 5 | 77220-KY6-000 | HOOK, SEAT CATCH | 2 | |
| 6 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 7 | 50354-428-000 | STOPPER,RUBBERB | 4 | |
