OEM Part
OEM Part
17507-AAN-B00
PLATE SETTING
Qty Required: 1
Ref #23 in Assembly
Part of Assembly

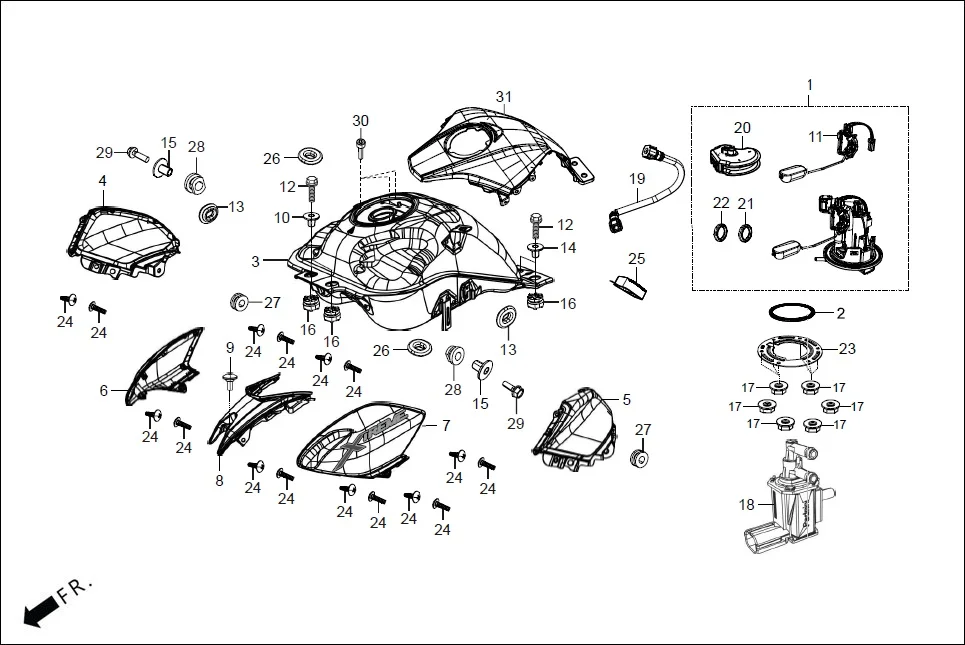

F-13-LCD
FUEL TANK
32 parts in this assembly
Assembly Diagram
Ref #23
Supported Vehicles21
H
HERO XTREME 125 XTEC2(Oct.,2025)
H
HERO GLAMOUR 125CC FV BSVI(Aug,2023)
H
HERO GLAMOUR MAGNETIC OBD II(Apr., 2025)
H
HERO GLAMOUR REVAMP OBD-II(Sept.,2024)
H
HERO GLAMOUR TECHNO(JAN.2024)
H
HERO GLAMOUR XTEC 2(Aug.,2025)
H
HERO Glamour 125 BS-VI Refresh (May,2022)
H
HERO Glamour BSVI Techno OBD II(Jan,2023)
Related Parts
16700-ACL-001
UNIT ASSY FUEL PUMP
17572-AAC-G70
GASKET FUEL PUMP
17510-ACL-000
TANK COMP FUEL
83546-ACL-000D
TANK COVER R SIDE (HEAVY GREY)
83646-ACL-000D
TANK COVER L SIDE (HEAVY GREY)
17555-ACL-000Y
SET TANK COVER FR RH (IRON NAIL SILVER MET)
