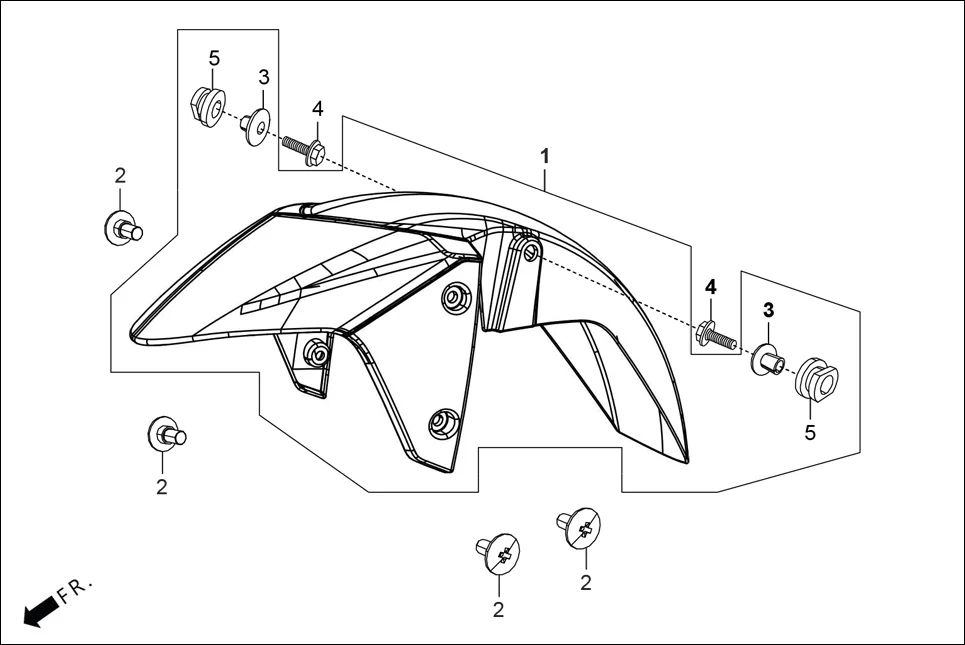

F-6-TFT - FRONT FENDER
Hero XTREME 125 XTEC2(Oct.,2025) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 6110A-ACL-000A | FRONT FENDER SUB. ASSY | 1 | |
| 2 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 3 | 90502-KEZ-900 | COLLAR, RUBBER CUSHION | 2 | |
| 4 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 5 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
