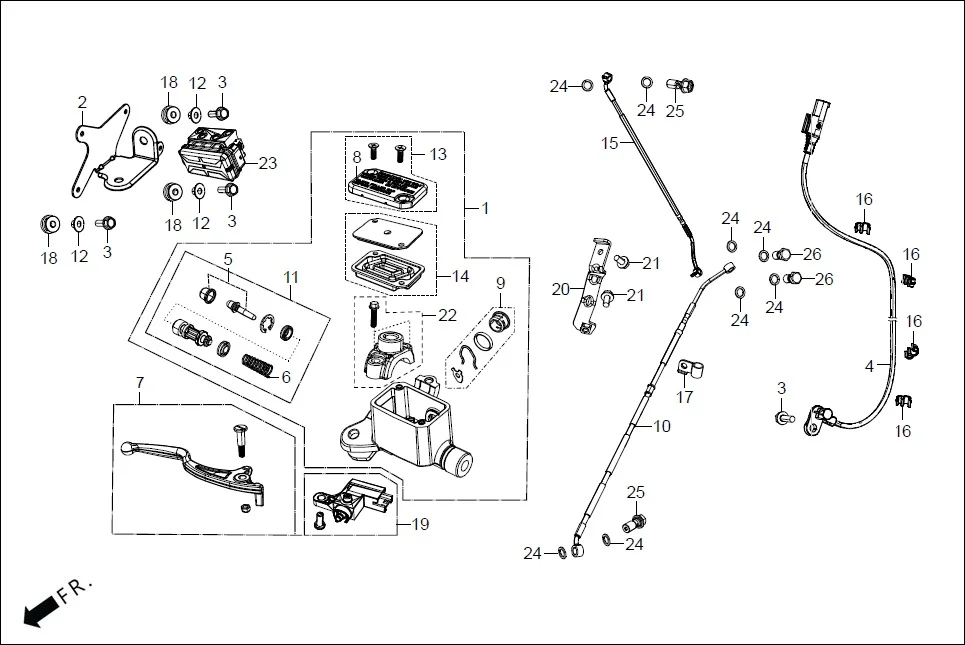

F-4 - FRONT DISC BRAKE ASSY. (MASTER CYL.)
Hero XTREME 125 XTEC2(Oct.,2025) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45510-ACP-000 | MASTER CYL SUB ASSY SET | 1 | |
| 2 | ADJSC3F000000G | BRACKET MOUNT UNIT CONTROL ABS UPPER | 1 | |
| 3 | 95701-06018-00 | BOLT FLANGE 6X18 | 4 | |
| 4 | 37520-RAA-000 | SENSOR REAR WHEEL SPEED | 1 | |
| 5 | 45595-ACP-000 | PUSHROD ASSY | 1 | |
| 6 | 45506-AAF-411 | SPRING | 1 | |
| 7 | 45508-ACJ-000 | LEVER SET | 1 | |
| 8 | 45513-ACP-000 | CAP MASTER CYLINDER | 1 | |
| 9 | 45540-ACF-000 | WINDOW ASSY KIT | 1 | |
| 10 | ADJSC3D000000G | HOSE HECU TO CALIPER FRONT ASSY | 1 | |
| 11 | 45530-ACP-000 | CYLINDER SET MASTER | 1 | |
| 12 | 19052-AAB-A00 | COLLAR ABS UNIT MOUNTING | 3 | |
| 13 | 45590-ACP-000 | RESERVOIR COVER SET | 1 | |
| 14 | 45560-ACP-000 | DIAPHRAGM SET | 1 | |
| 15 | ADJSC3F001000G | BRAKE HOSE FRONT MC TO HECU ASSY | 1 | |
| 16 | 43301-AAB-A00 | CLIP BRAKE LINE | 4 | |
| 17 | 45154-ACF-000 | CLAMPER FR BRAKE HOSE | 1 | |
| 18 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 3 | |
| 19 | ACRGC3F015000G | SWITCH ASSY | 1 | |
| 20 | 45165-ACL-010 | CLAMP A FR BRAKE | 1 | |
| 21 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 22 | 45509-ACP-000 | CLAMP SET | 1 | |
| 23 | ADJSC3F008000G | HECU DUAL CHANNEL | 1 | |
| 24 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 25 | 90145-RAA-000 | OIL BOLT 10X22 | 2 | |
| 26 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
