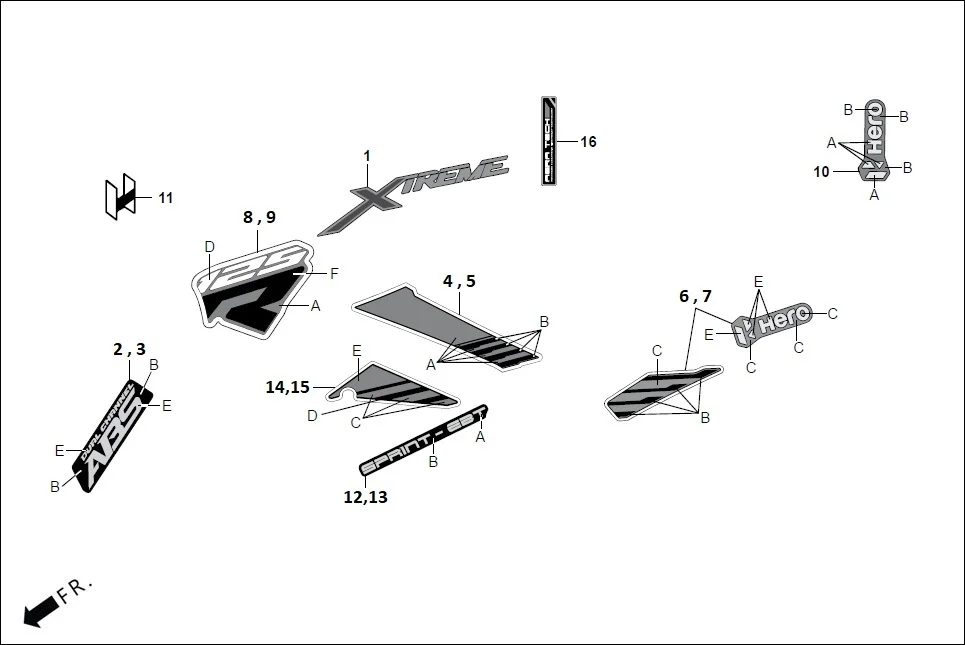

F-27-TFT-STRIPES/MARKS
HeroXTREME 125 XTEC2(Oct.,2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86830-ACL-000H | EMBLEM TANK COVER SIDE | 2 | |
| 2 | ADJSS6B0070BAG | MARK ABS RH (TYPE-1) | 1 | |
| 3 | ADJSS6B0080BAG | MARK ABS LH (TYPE-1) | 1 | |
| 4 | ADJSS6B0010BEG | STRIPE A SIDE COVER RH (TYPE-4) | 1 | |
| 5 | ADJSS6B0020BEG | STRIPE A SIDE COVER LH (TYPE-4) | 1 | |
| 6 | ADJSS6B0050BAG | STRIPE COVER SIDE BOX RH (TYPE-1) | 1 | |
| 7 | ADJSS6B0060BAG | STRIPE COVER SIDE BOX LH (TYPE-1) | 1 | |
| 8 | ADJSS6B0090BAG | STRIPE SHROUD RH (TYPE-1) | 1 | |
| 9 | ADJSS6B0100BAG | STRIPE SHROUD LH (TYPE-1) | 1 | |
| 10 | 77235-ACL-000A | H HERO MARK COWL CENTER RR (TYPE-1) | 1 | |
| 11 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 12 | 86751-ACL-000A | STRIPE COVER R SIDE (TYPE-1) | 1 | |
| 13 | 86752-ACL-000A | STRIPE COVER L SIDE (TYPE-1) | 1 | |
| 14 | ADJSS6B0030BEG | STRIPE B SIDE COVER RH (TYPE-2) | 1 | |
| 15 | ADJSS6B0040BEG | STRIPE B SIDE COVER LH (TYPE-2) | 1 | |
| 16 | ADJSS6B000000G | STRIPE TANK FUEL TOP | 1 |
