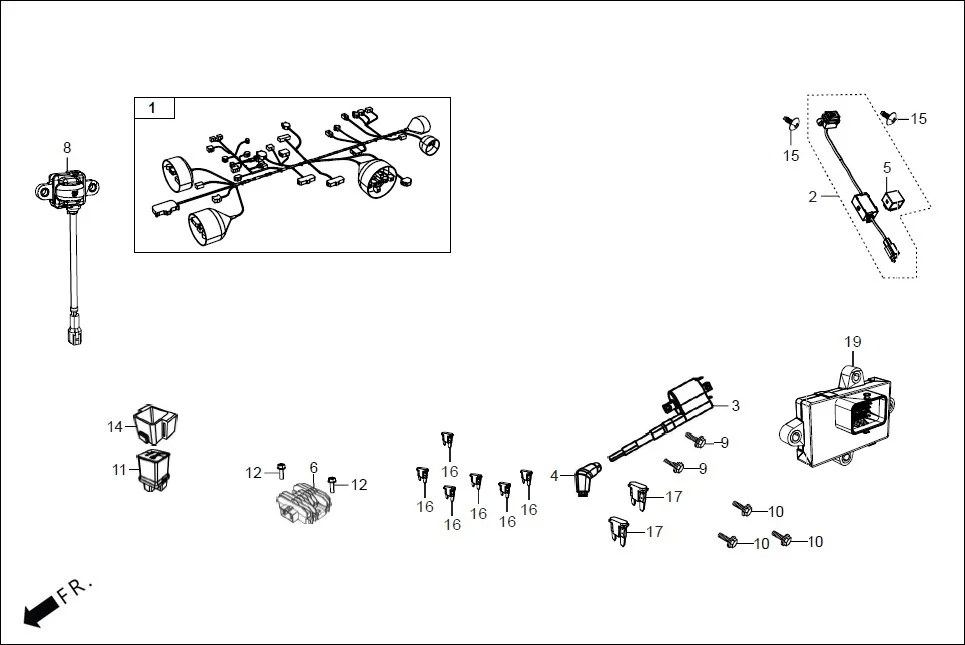

F-24-LCD - WIRE HARNESS
Hero XTREME 125 XTEC2(Oct.,2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADJSA7R001000G | HARNESS WIRE | 1 | |
| 2 | ADJSA7U001000G | USB CHARGER ASSY | 1 | |
| 3 | 30510-ACL-001 | COIL COMP IGNITION. | 1 | |
| 3 | 30510-ACL-002 | COIL COMP IGNITION | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 6 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 8 | 35160-AAE-312 | SENSOR ASSY BANK ANGLE | 1 | |
| 9 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 11 | 38501-AAG-D0099 | RELAY COMP. START | 1 | |
| 14 | 38506-AAF-401 | SUSP. RELAY START | 1 | |
| 15 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 2 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 5 | |
| 17 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 19 | ADJSA7F001000G | UNIT COMP ECU | 1 | |
