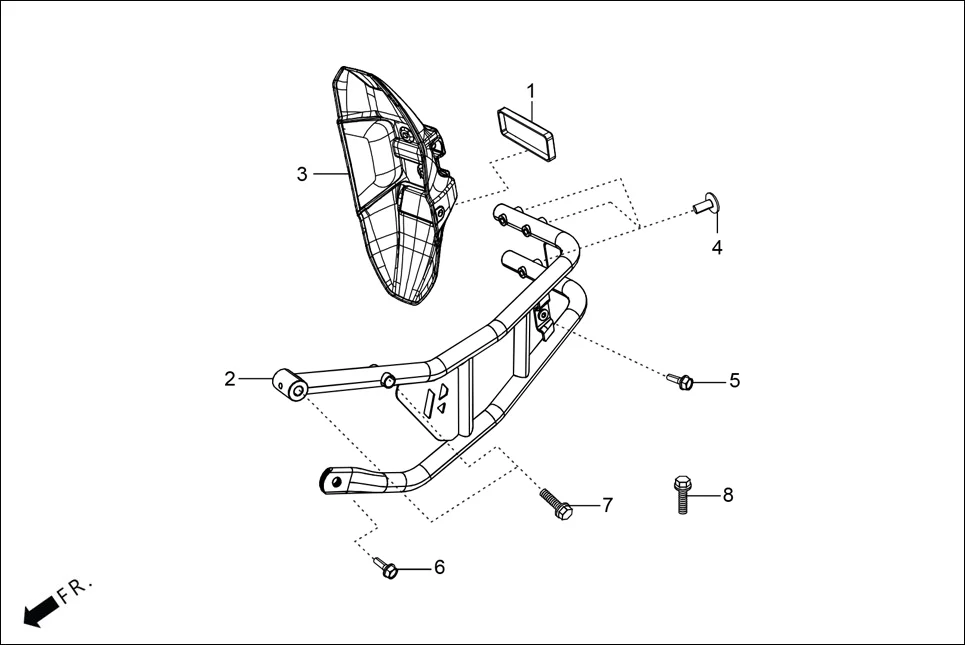

F-21B - REAR HUGGER FENDER
Hero XTREME 125 XTEC2(Oct.,2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 2 | 50186-ACL-000 | STAY HUGGER FENDER | 1 | |
| 3 | 80125-ACL-000 | HUGGER REAR FENDER | 1 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 3 | |
| 5 | 95701-05010-00 | BOLT FLANGE 5X10 | 1 | |
| 6 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
| 7 | 95701-08050-00 | BOLT, FLANGE, 8 X 50 | 2 | |
| 8 | 95701-08045-00 | BOLT, FLANGE 8 X45 | 1 | |
