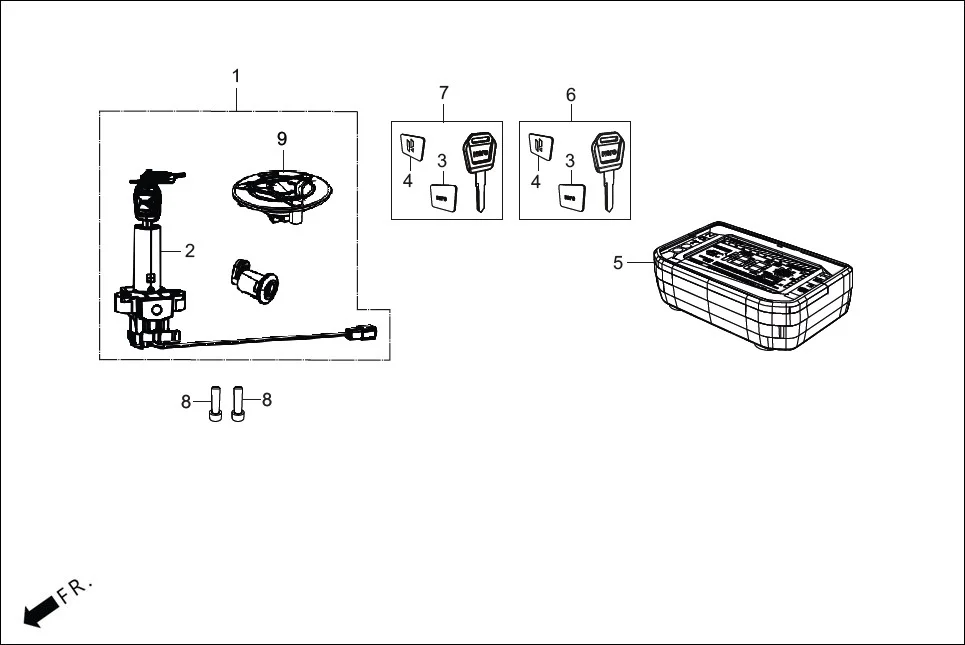

F-2-LCD - SPEEDOMETER/CABLE/KEY SET
Hero XTREME 125 XTEC2(Oct.,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-ACL-001 | KEY SET | 1 | |
| 2 | 35100-AAK-201 | SWITCH ASSY., COMB & LOCK | 1 | |
| 3 | 35114-ABW-000 | EMBLEM, WORD MARK | 2 | |
| 4 | 35113-ABW-000 | EMBLEM ICON | 2 | |
| 5 | ADJSA7Y000100G | METER COMB ASSY | 1 | |
| 6 | 35122-ABW-001 | BLANK KEY NO. 02 | 1 | |
| 7 | 35121-ABW-001 | BLANK KEY NO. 01 | 1 | |
| 8 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 9 | 17620-ACL-001 | CAP COMP FUEL FILLER BS6 ETHANOL | 1 | |
