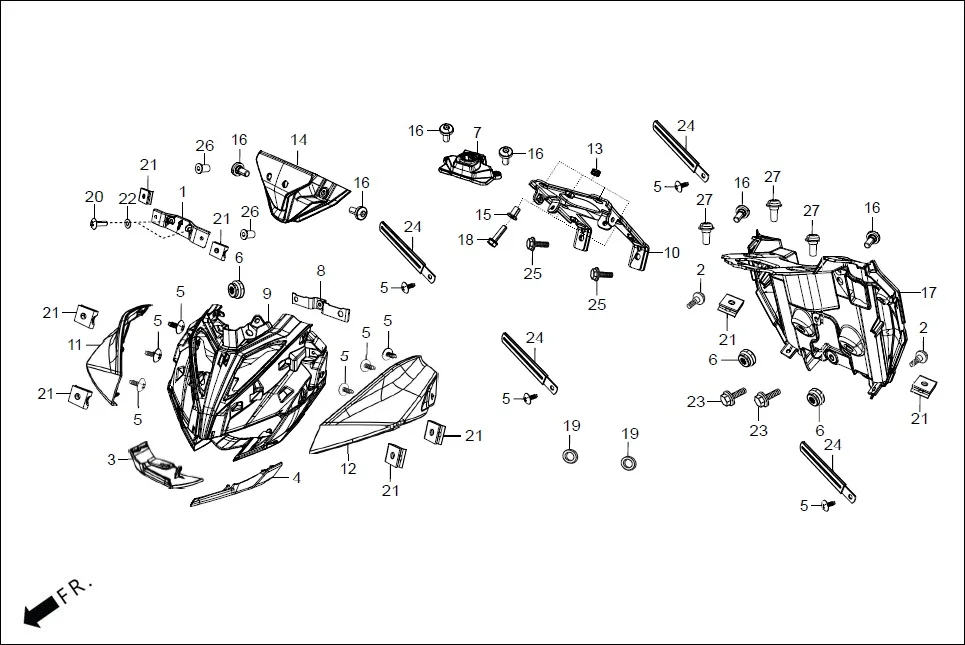

F-1A-LCD - FAIRING(FR. VISOR/COWL/STAY)
Hero XTREME 125 XTEC2(Oct.,2025) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADJSB4H005000G | BRACKET PLATE NUMBER | 1 | |
| 2 | ACLAB4E000000G | SCREW HINGE PATCH M5X16 | 2 | |
| 3 | 61328-ACL-000A | FRONT COWL LOWER RH (BLACK NH-1) | 1 | |
| 4 | 61329-ACL-000A | FRONT COWL LOWER LH (BLACK NH-1) | 1 | |
| 5 | 93903-34210 | SCREW TAPPING 4X10 | 10 | |
| 6 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 7 | ADJSB4H011000G | COVER MAIN SWITCH | 1 | |
| 8 | 61311-ACL-000 | STAY HEADLIGHT SUPPORT | 1 | |
| 9 | ADJSB4H001000G | COWL FRONT | 1 | |
| 10 | ADJSB4H014000G | STAY SPEEDOMETER COMP | 1 | |
| 11 | 61322-ACL-000H | FRONT COWL RH (PEARL RED) | 1 | |
| 11 | 61322-ACL-000P | FRONT COWL RH (MATT SHADOW GREY) | 1 | |
| 11 | 61322-ACL-000N | FRONT COWL RH (LEAF GREEN METALLIC) | 1 | |
| 12 | 61323-ACL-000H | FRONT COWL LH (PEARL RED) | 1 | |
| 12 | 61323-ACL-000P | FRONT COWL LH (MATT SHADOW GREY) | 1 | |
| 12 | 61323-ACL-000N | FRONT COWL LH (LEAF GREEN METALLIC) | 1 | |
| 13 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 4 | |
| 14 | ADJSB4H004000G | COVER SPEEDOMETER | 1 | |
| 15 | 83518-KVH-900 | COLLAR, UTILITY BOX | 4 | |
| 17 | ADJSB4H000000G | PANEL COWL FRONT INNER | 1 | |
| 18 | 90002-ABA-000 | BOLT FLANGE 5X20 | 4 | |
| 19 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 20 | 90109-SB6-0001 | SCREW, TRUSS, 5X16 | 2 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 22 | 90504-964-000 | WASHER, THRUST, 5MM | 2 | |
| 23 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 24 | 91410-ABW-000 | CLIP 3X130 | 4 | |
| 25 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 26 | 90111-KW3-000 | NUT COWL SET M5X0.8 | 2 | |
