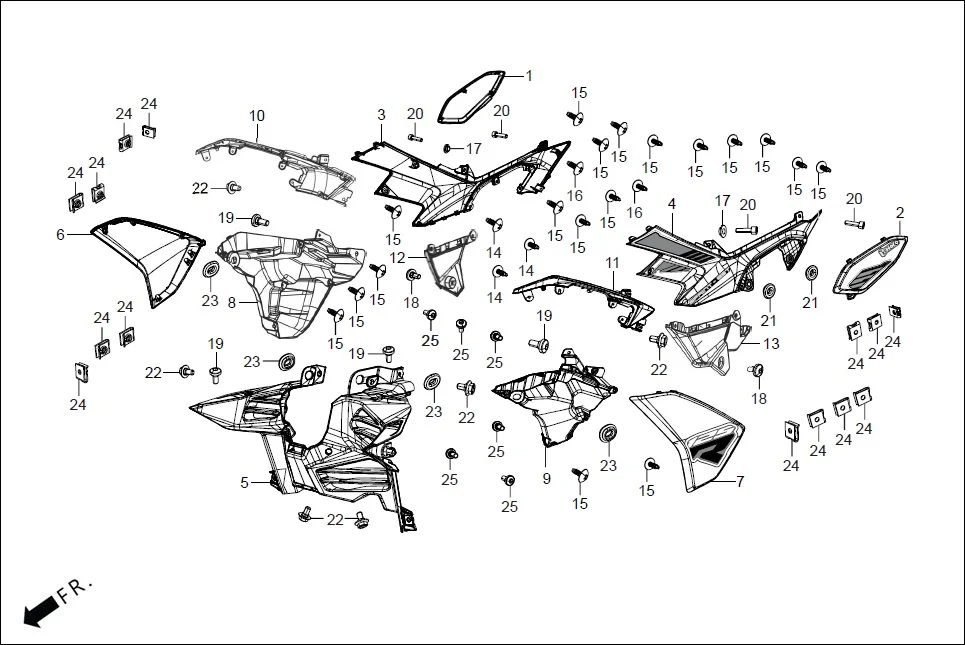

F-14-LCD - SIDE COVER
Hero XTREME 125 XTEC2(Oct.,2025) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADJSS6A0060BAG | SET COVER SIDE BOX RH (BLACK NH-1 (TYPE-1)) | 1 | |
| 2 | ADJSS6A0070BAG | SET COVER SIDE BOX LH (BLACK NH-1 (TYPE-1)) | 1 | |
| 3 | ADJSS6A0020BAG | SET COVER SIDE RH (BLACK NH-1 (TYPE-1)) | 1 | |
| 3 | ADJSS6A0020BBG | SET COVER SIDE RH (BLACK NH-1 (TYPE-2)) | 1 | |
| 3 | ADJSS6A0020BCG | SET COVER SIDE RH (BLACK NH-1 (TYPE-3)) | 1 | |
| 4 | ADJSS6A0030BAG | SET COVER SIDE LH (BLACK NH-1 (TYPE-1)) | 1 | |
| 4 | ADJSS6A0030BBG | SET COVER SIDE LH (BLACK NH-1 (TYPE-2)) | 1 | |
| 4 | ADJSS6A0030BCG | SET COVER SIDE LH (BLACK NH-1 (TYPE-3)) | 1 | |
| 5 | ADJSB4E001000G | SHROUD SIDE INNER FRONT | 1 | |
| 6 | ADJSS6A0040BAG | SET SHROUD RH (BLACK NH-1 (TYPE-1)) | 1 | |
| 6 | ADJSS6A0040BBG | SET SHROUD RH (BLACK NH-1 (TYPE-2)) | 1 | |
| 6 | ADJSS6A0040BCG | SET SHROUD RH (BLACK NH-1 (TYPE-3)) | 1 | |
| 7 | ADJSS6A0050BAG | SET SHROUD LH (BLACK NH-1 (TYPE-1)) | 1 | |
| 7 | ADJSS6A0050BBG | SET SHROUD LH (BLACK NH-1 (TYPE-2)) | 1 | |
| 7 | ADJSS6A0050BCG | SET SHROUD LH (BLACK NH-1 (TYPE-3)) | 1 | |
| 8 | 83553-ACL-000 | SIDE SHROUD INNER BACK R | 1 | |
| 9 | ADJSB4E002000G | SHROUD SIDE INNER REAR LH | 1 | |
| 10 | 83547-ACL-000D | SIDE SHROUD GARNISH R | 1 | |
| 11 | ADJSB4E0000AWG | SHROUD GARNISH SIDE LH (HEAVY GREY METALLIC) | 1 | |
| 12 | 83596-ACL-000 | SIDE COVER LOWER R | 1 | |
| 13 | 83597-ACL-000 | SIDE COVER LOWER L | 1 | |
| 14 | 93903-24310 | SCREW, TAPPING, 4X12 | 3 | |
| 15 | 93903-34380 | SCREW, TAPPING, 4X12 | 18 | |
| 16 | 93903-34210 | SCREW TAPPING 4X10 | 2 | |
| 17 | 90501-AAC-300 | COLLAR HAND GUARD R | 2 | |
| 18 | 90001-06014-02 | SOCKET BOLT SPL M6X14 | 2 | |
| 20 | 96600-06025-00 | BOLT, SOCKET, 6 X 25 | 4 | |
| 21 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 22 | 90111-KPL-900 | BOLT, INNER COVER | 7 | |
| 23 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 4 | |
| 24 | 90320-GC3-000 | NUT, SPRING, M5 | 14 | |
