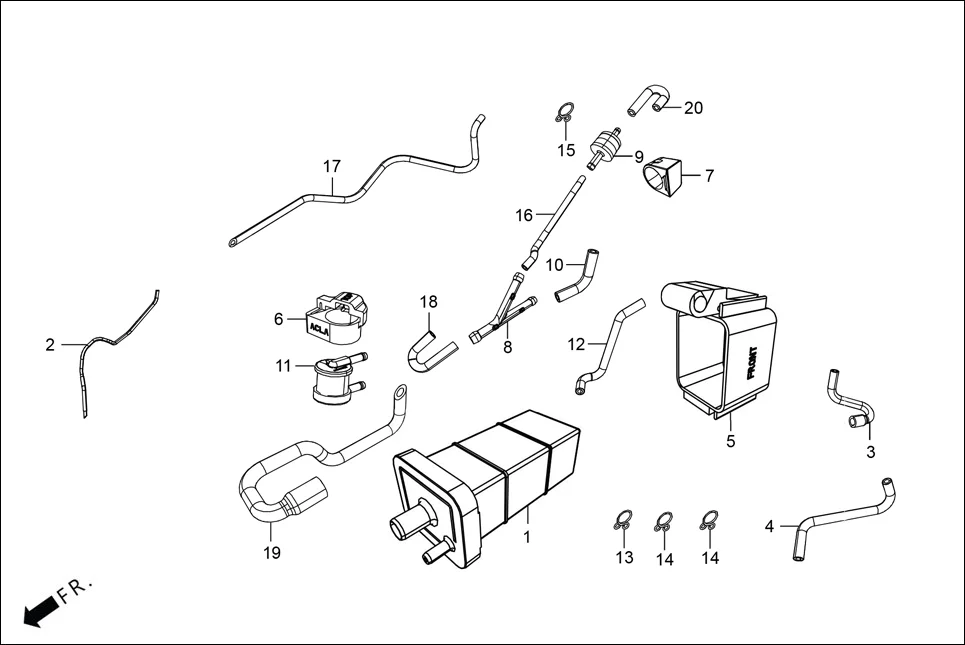

F-13A - CANISTER ASSY
Hero XTREME 125 XTEC2(Oct.,2025) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAH-A0099 | CANISTER COMP | 1 | |
| 2 | 1719A-ACL-000 | TUBE DRAIN SUB ASSY | 1 | |
| 3 | 1769K-ACL-000 | TUBE PURGE A SUB ASSY | 1 | |
| 4 | 1769M-ACL-000 | TUBE PURGE B SUB ASSY | 1 | |
| 5 | 17411-AAG-A00 | SUSP. CANISTER | 1 | |
| 6 | 17421-ACL-000 | SUSP ROLL OVER VALVE | 1 | |
| 7 | 17432-AAE-100 | SUSP. ONE WAY VALVE | 1 | |
| 8 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 9 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 10 | 1769A-ACL-000 | TUBE A PIPE BREATHER SUB ASSY | 1 | |
| 11 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 12 | 1769B-ACL-000 | TUBE A CANISTER SUB ASSY | 1 | |
| 13 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 14 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 15 | 95002-02080 | CLIP, TUBE | 12 | |
| 16 | 1769D-ACL-000 | TUBE A J3W SUB ASSY | 1 | |
| 17 | 1769H-ACL-000 | TUBE DRAIN CANISTER SUB ASSY | 1 | |
| 18 | 1769E-ACL-000 | TUBE B J3W SUB ASSY | 1 | |
| 19 | 17696-AAF-400 | TUBE BREATHER CANISTER | 1 | |
| 20 | 17695-AAH-A00 | TUBE BREATHER OWV | 1 | |
