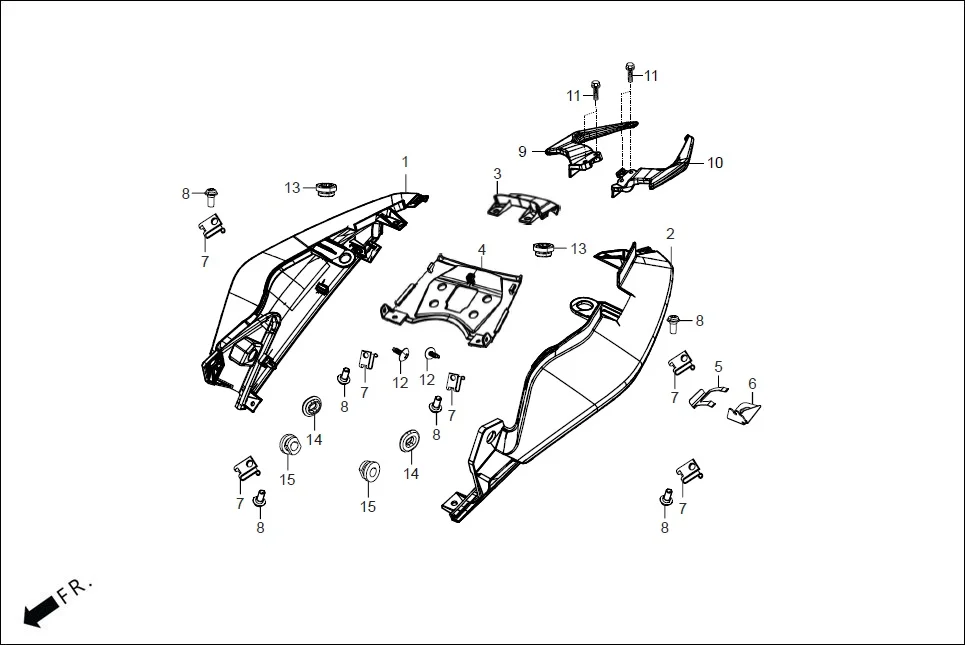

F-12A-LCD-REAR COWL/GRIP REAR
HeroXTREME 125 XTEC2(Oct.,2025) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77346-ACL-000D | COWL RIGHT SIDE (NH-194M-U) | 1 | |
| 2 | 77356-ACL-000D | COWL LEFT SIDE (NH-194M-U) | 1 | |
| 3 | 77230-ACL-000A | SET COWL CENTER RR (BLACK NH-1) | 1 | |
| 4 | 77266-ACL-000 | COWL RR UNDER | 1 | |
| 5 | 75581-AAN-B00 | SET SPRING LOCK KEY | 1 | |
| 6 | 77244-ACL-000 | STAY CABLE SEAT LOCK | 1 | |
| 7 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 8 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 9 | 50470-ACL-000H | GRIP REAR R (PEARL RED) | 1 | |
| 9 | 50470-ACL-000P | GRIP REAR R (MATT SHADOW GREY) | 1 | |
| 9 | 50470-ACL-000N | GRIP REAR R (LEAF GREEN METALLIC) | 1 | |
| 10 | 50460-ACL-000H | GRIP REAR L (PEARL RED) | 1 | |
| 10 | 50460-ACL-000P | GRIP REAR L (MATT SHADOW GREY) | 1 | |
| 10 | 50460-ACL-000N | GRIP REAR L (LEAF GREEN METALLIC) | 1 | |
| 11 | 95701-08025-07 | BOLT FLANGE 8X25 | 4 | |
| 12 | 93903-25180 | SCREW, TAPPING, 5 X 10 | 2 | |
| 13 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 14 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 15 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 |
