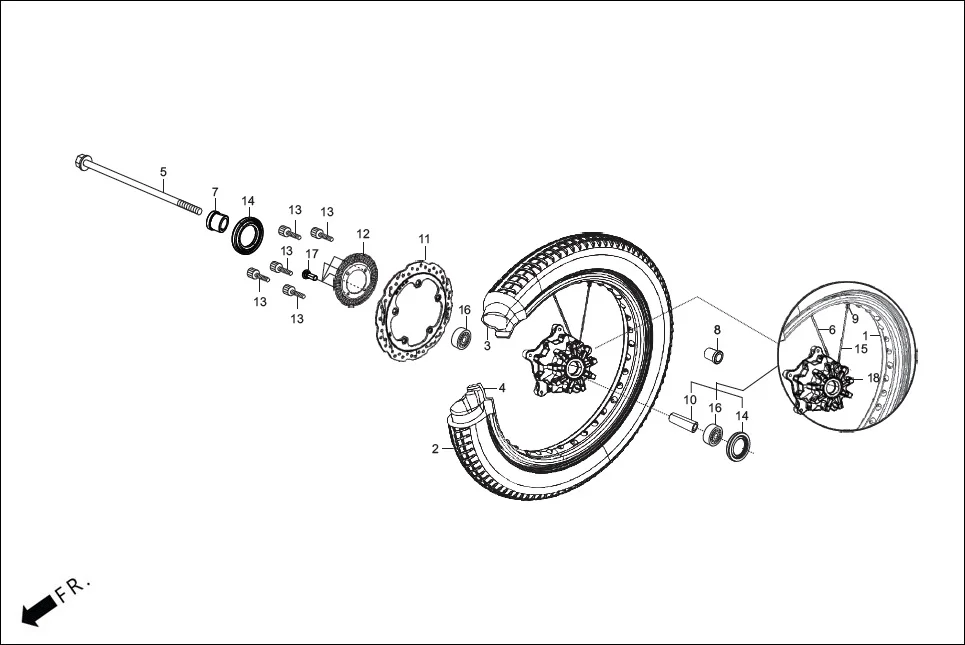

F-9 - FRONT WHEEL
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44701-ACY-100 | RIM FRONT WHEEL | 1 | |
| 3 | 44712-ACY-100 | TUBE FRONT | 1 | |
| 4 | 44713-ABW-100 | FLAP, TYRE FRONT | 1 | |
| 5 | 44301-ACY-100 | AXLE FR WHEEL | 1 | |
| 6 | 97278-ABW-100 | SPOKE FRONT B | 18 | |
| 7 | 44311-ACY-100 | COLLAR FR WHEEL RH DISC SIDE | 1 | |
| 8 | 44312-ACY-100 | COLLAR FR WHEEL LH | 1 | |
| 9 | 44603-ABW-100 | NIPPLE SPOKE FRONT | 36 | |
| 10 | 44620-ACY-100 | FRONT COLLAR AXLE DISTANCE | 1 | |
| 11 | 45251-ACY-110 | DISC FRONT BRAKE | 1 | |
| 12 | 45252-AAB-A00 | SENSOR RING FR DISC | 1 | |
| 13 | 90105-08024-2T | BOLT DISC MTG 8X24 | 5 | |
| 14 | 91257-ACY-100 | DUST SEAL 35X25X5 | 2 | |
| 15 | 97550-ABW-100 | SPOKE FRONT A | 18 | |
| 16 | 96140-62020-10 | BRG., BALL RADIAL, 6202 | 2 | |
| 17 | 96600-05012-10 | BOLT SOCKET 5X12 | 4 | |
| 18 | 44635-ACY-100 | HUB SUB ASSEMBLY FRONT | 1 | |
