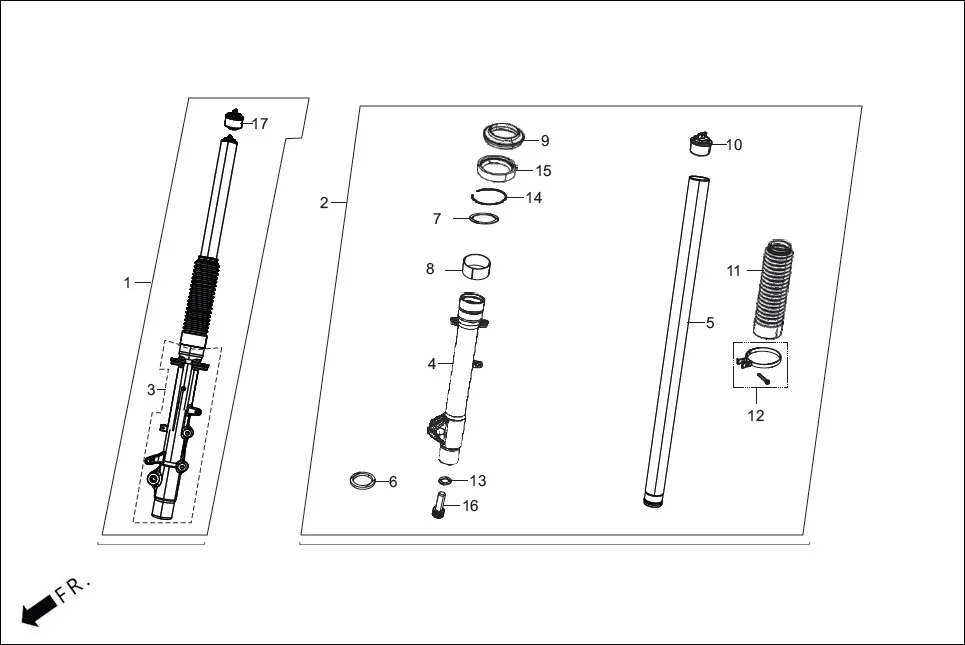

F-28A - OPTIONAL (FRONT FORK)
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-ACY-130 | FORK ASSY R FRONT | 1 | |
| 2 | 51500-ACY-130 | FORK ASSY L FRONT | 1 | |
| 3 | 51420-ACY-100 | CASE COMP R FRONT BOTTOM | 1 | |
| 4 | 51520-ACY-100 | CASE COMP L FRONT BOTTOM | 1 | |
| 5 | 51410-ACY-130 | PIPE COMP FR FORK | 2 | |
| 6 | 51438-ACY-130 | COMPRESSION RUBBER | 2 | |
| 7 | 51419-ACY-100 | RING BACK UP | 2 | |
| 8 | 51423-ACY-100 | SLIDE BUSH | 2 | |
| 9 | 51425-ACY-100 | SEAL DUST | 2 | |
| 10 | 51543-ACY-130 | CARTRIDGE ASSY LH | 1 | |
| 11 | 51615-ACY-100 | BOOT FRONT FORK | 2 | |
| 12 | 51617-ACY-100 | BOOT CLAMP | 2 | |
| 13 | 90544-AAB-A02 | WASHER SPECIAL | 2 | |
| 14 | 90601-ACY-100 | RING OIL SEAL STOPPER | 2 | |
| 15 | 91255-ACY-100 | SEAL OIL | 2 | |
| 16 | 90116-AAB-A02 | BOLT SOCKET | 2 | |
| 17 | 51434-ACY-130 | CARTRIDGE ASSY RH | 1 | |
