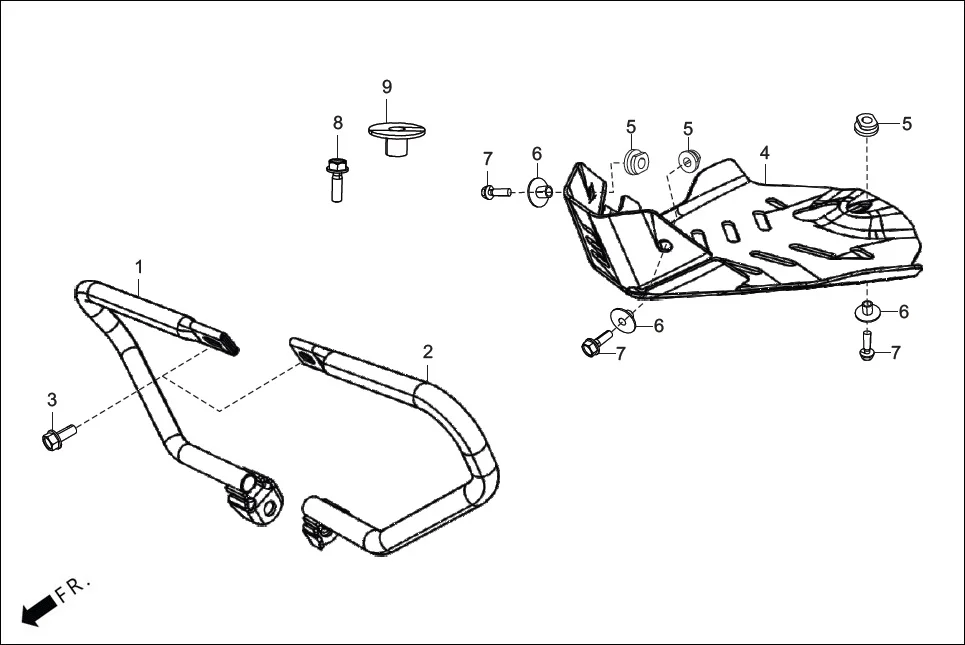

F-28 - GUARD ENGINE/SKID PLATE
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50803-ACY-100 | GUARD ENGINE R | 1 | |
| 2 | 50804-ACY-100 | GUARD ENGINE L | 1 | |
| 3 | 95701-08020-0F | BOLT FLANGE 8X20 | 2 | |
| 4 | 64301-ACY-100 | SKID PLATE | 1 | |
| 5 | 19578-ACY-100 | RUBBER RADIATOR MOUNTING | 3 | |
| 6 | 19581-ACY-100 | COLLAR RADIATOR MOUNTING | 3 | |
| 7 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 3 | |
| 8 | SFBLFH281G | BOLT FLANGE HEX M6X1.0X20X8.8_N | 1 | |
| 9 | SFCRF0021G | COLLAR FLANGE 21X9.7X6.5_AA | 1 | |
