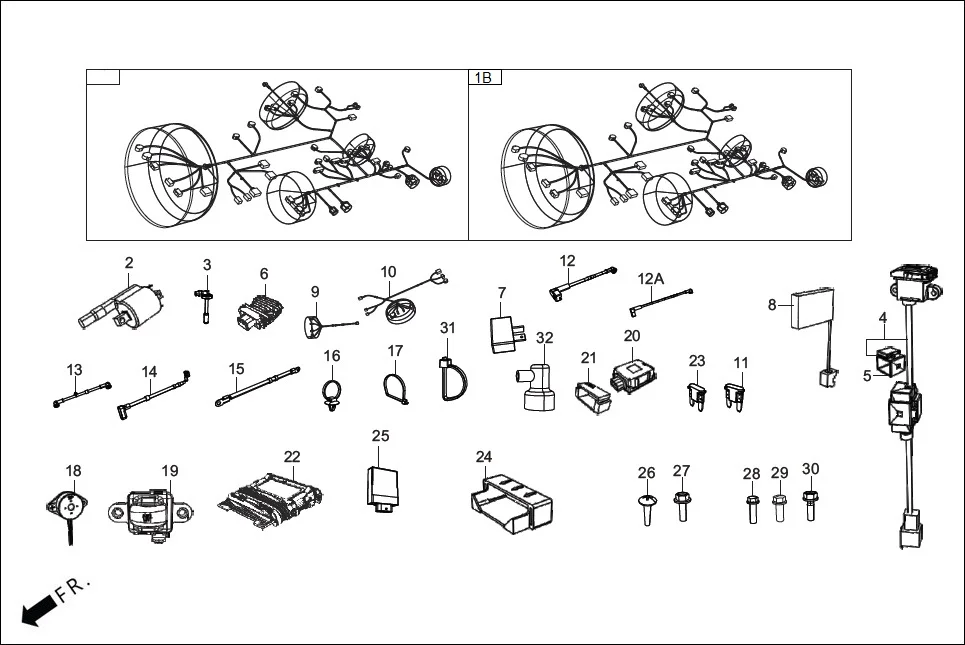

F-24-CONN - ELECTRICALS (WIRE HARNESS)
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 30510-ACW-001 | COIL COMP. IGNITION | 1 | |
| 3 | ACYBA7D000000G | NOISE SUPPRESSOR CAP ASSY | 1 | |
| 4 | 31300-ACP-301 | USB CHARGER ASSY | 1 | |
| 5 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 6 | 31600-ACA-001 | REG RECT COMP | 1 | |
| 7 | 31700-HMC-000 | RECTIFIER | 1 | |
| 8 | 3181A-AAL-C31 | CELL ASSY TCU | 1 | |
| 9 | 32102-ACY-100 | TAIL LIGHT SUB CORD | 1 | |
| 10 | 32104-ACY-100 | METER SUB CORD | 1 | |
| 10 | 32104-ACY-120 | METER SUB CORD | 1 | |
| 11 | 98215-HMC-000 | MINI FUSE 15A | 5 | |
| 12 | 32401-ACY-100 | CABLE ST MAG | 1 | |
| 12 | 32401-ACY-120 | CABLE ST MAG | 1 | |
| 13 | 32410-ACY-100 | CABLE START MOTOR | 1 | |
| 14 | 32601-ACY-100 | CABLE BATT EARTH | 1 | |
| 14 | 32601-ACY-120 | CABLE BATT EARTH | 1 | |
| 15 | 32602-ACY-100 | CABLE ENG EARTH | 1 | |
| 16 | 32642-RAA-000 | CLAMP BAND | 9 | |
| 17 | 32648-RAA-000 | CABLE TIE | 15 | |
| 18 | 33470-AAY-001 | ELECTRONIC BEEPER | 1 | |
| 19 | 35160-RAA-001 | SENSOR ASSY BANK ANGLE | 1 | |
| 20 | RAAAA7M001000G | TELEMATICS CONTROL UNIT | 1 | |
| 21 | 38720-AAL-C31 | CUSHION TELEMATICS CONTROL UNIT | 1 | |
| 22 | 38770-ACJ-001 | UNIT COMP ECU | 1 | |
| 23 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 24 | 38871-ACA-001 | CUSHION BCM UNIT | 1 | |
| 25 | ACYBA7C000000G | UNIT BCM COMP | 1 | |
| 25 | 38800-ACY-101 | UNIT ASSY BCM | 1 | |
| 26 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 2 | |
| 27 | 95701-05016-00 | BOLT FLANGE 5X16 | 2 | |
| 28 | 95701-06020-0F | BOLT FLANGE 6X20 | 2 | |
| 29 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 30 | 96001-06020-0F | BOLT FLANGE SH 6X20 | 2 | |
| 31 | 91551-RAA-000 | BAND CLAMP | 1 | |
| 32 | RAABA7R001000G | OIL PRESSURE SWITCH ASSY | 1 | |
