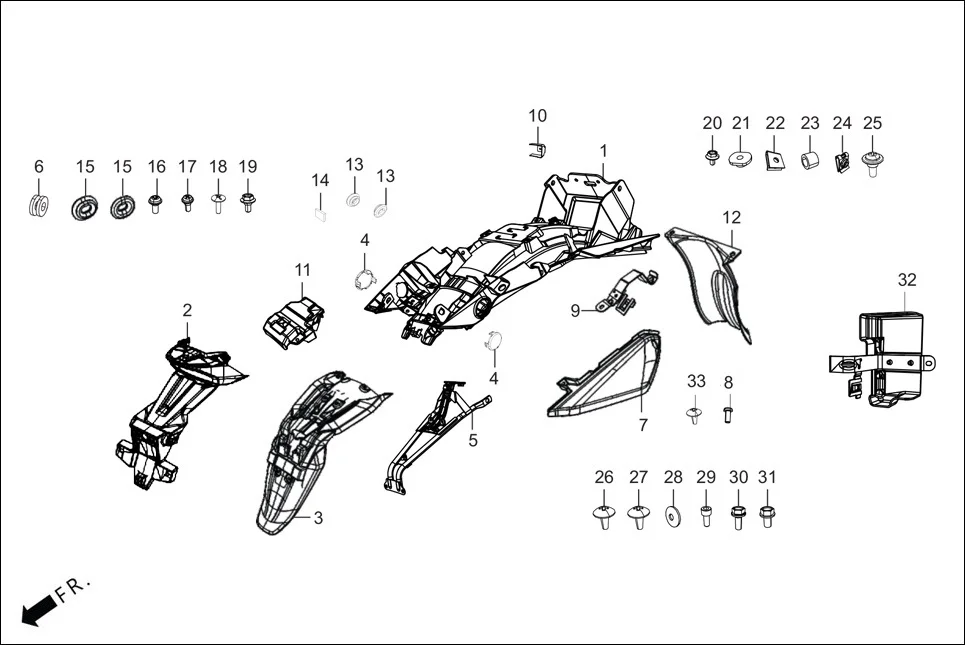

F-21-BASE - REAR FENDER
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80120-ACY-100 | REAR FENDER A | 1 | |
| 2 | 80130-ACY-100 | REAR FENDER B | 1 | |
| 3 | 80150-ACY-100 | REAR FENDER C | 1 | |
| 4 | 80129-ACY-100 | REAR FENDER CAP | 2 | |
| 5 | 50240-ACY-100 | REAR FENDER STAY | 1 | |
| 6 | 18293-KTP-900 | RUBBER, PKG, PROTECTOR | 2 | |
| 7 | 18314-ACY-100 | MUFFLER PROTECTOR | 1 | |
| 8 | 93500-05010-0G | SCREW PAN 5X10 | 1 | |
| 9 | 5032B-ACY-110 | BAND BATTERY ASSY | 1 | |
| 10 | 50380-ACY-100 | STAY ST MAG | 1 | |
| 11 | 80102-ACY-100 | ECU COVER | 1 | |
| 12 | 80105-ACY-100 | MUD GUARD RR FORK | 1 | |
| 13 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 14 | 83407-ACK-000 | CUSHION BATTERY | 10 | |
| 15 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 16 | 90101-05012-0D | SCREW HINGE PATCH | 2 | |
| 17 | 90101-GE0-000 | SCREW, HINGE PATCH | 1 | |
| 18 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 1 | |
| 19 | 90111-187-000 | BOLT, FLANGE. 6 MM | 7 | |
| 20 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 21 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 22 | 90311-MT3-000 | NUT, CLIP, 6 MM | 3 | |
| 23 | 90312-KTP-900 | COLLAR, M6 | 2 | |
| 24 | 90677-KAN-961 | NUT CLIP 5MM | 8 | |
| 25 | 91509-KWA-940 | SCREW PAN 5×13.5 | 8 | |
| 26 | 93903-25180 | SCREW, TAPPING, 5 X 10 | 2 | |
| 27 | 93903-25280 | SCREW, TAPPING 5X12 | 9 | |
| 28 | 94103-06700 | WASHER, PLAIN, 6 MM | 4 | |
| 29 | 96600-06016-00 | BOLT, SOCKET, 6 X 16 | 2 | |
| 30 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 31 | 95701-08014-00 | BOLT FLANGE 8X14 | 4 | |
| 32 | ACYBB4U002000G | COVER BATTERY SUB ASSY | 1 | |
| 33 | 93903-24380 | SCREW TAPPING, 4 X 12 | 1 | |
