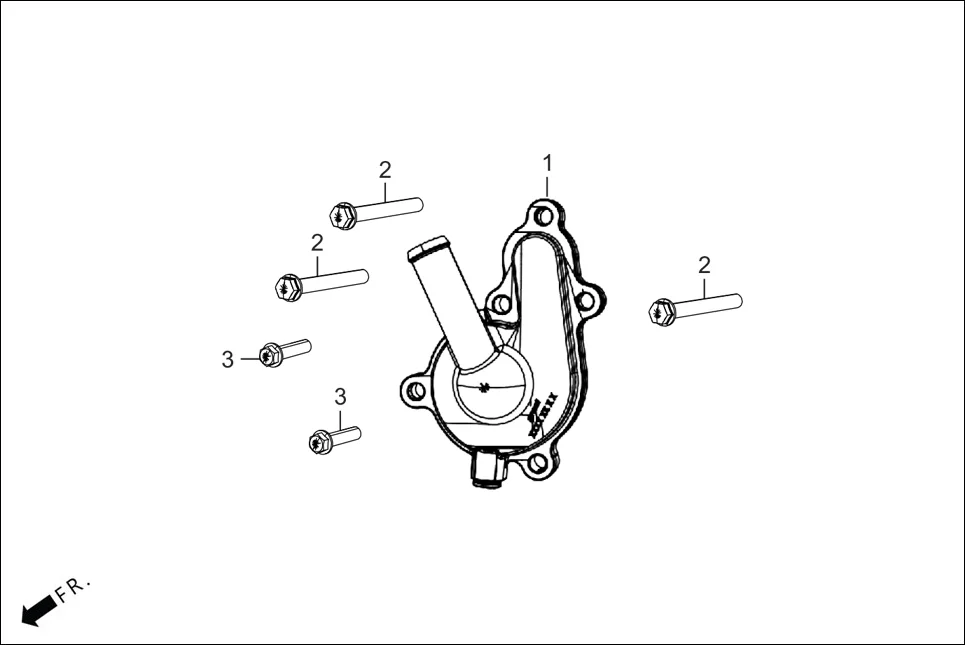

F-1C-BASE - WATER PUMP
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19100-ACY-001 | WATER PUMP COMP | 1 | |
| 2 | 96001-06055-00 | BOLT FLANGE SH 6X55 | 3 | |
| 3 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
