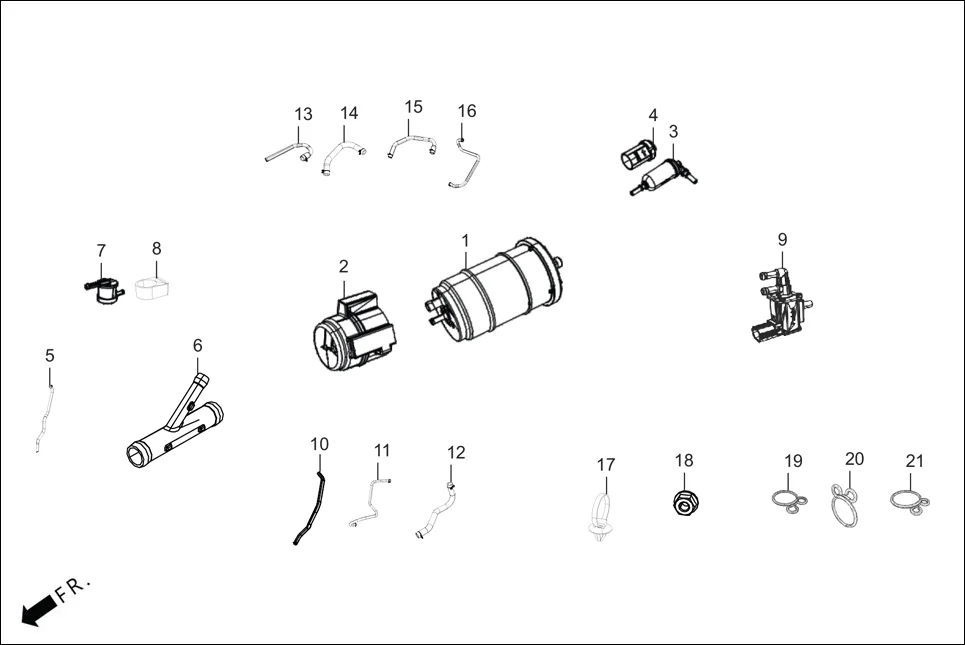

F-13A - FUEL TANK (CANISTER/TUBES)
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAM-001 | CANISTER COMP | 1 | |
| 2 | 17411-ACY-100 | SUSP CANISTER | 1 | |
| 3 | 1640A-ACY-100 | EXTERNAL FILTER SUB ASSY | 1 | |
| 4 | 16411-ACY-100 | SUSP EXTERNAL FILTER | 1 | |
| 5 | 1719A-ACY-100 | TUBE DRAIN A SUB ASSY | 1 | |
| 6 | 17230-AAH-A00 | JOINT 3 WAY, DRAIN | 1 | |
| 7 | 17420-AAE-100 | ROLL OVER VALVE | 1 | |
| 8 | 17421-AAB-500 | SUSP ROLL OVER VALVE | 1 | |
| 9 | ACYBA8B000000G | VALVE PURGE SOLENOID | 1 | |
| 10 | 1768B-ACY-100 | TUBE DRAIN B SUB ASSY | 1 | |
| 11 | 1769B-ACY-100 | TUBE A CANISTER SUB ASSY | 1 | |
| 12 | 1769E-ACY-100 | TUBE B J3W SUB ASSY | 1 | |
| 13 | 1769G-ACY-100 | TUBE AIR CANISTER SUB ASSY | 1 | |
| 14 | 1769H-ACY-100 | TUBE DRAIN CANISTER SUB ASSY | 1 | |
| 15 | 1769K-ACY-100 | TUBE PURGE A SUB ASSY | 1 | |
| 16 | 1769M-ACY-100 | TUBE PURGE B SUB ASSY | 1 | |
| 17 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 18 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 19 | 95002-02080 | CLIP, TUBE | 9 | |
| 20 | 95002-02130 | CLIP B 12.5 TUBE | 3 | |
| 21 | 95002-70000 | CLIP, C11 TUBE | 1 | |
